Ecologix clarifiers are designed for minimal footprint and rapid particle settling. Our clarifiers are simple to operate and maintain, flexible in treatment capacity, and highly effective at removing solids in waste streams with pollutants that tend to sink. Systems can be skid-mounted as a stand-alone product, or integrated into a full-scale treatment program.
To discuss your wastewater treatment solution, call on one of our professional
Engineers to request a budgetary proposal for your specific requirements.
Settlement Clarification with an Ecologix Incline Plate Clarifier
Settlement clarification is the best process for removing coarse, heavy contaminants from
water. Ecologix clarifiers include an integrated rapid mix tank and floc tank. As water
enters the tank, mixers agitate chemicals into the solution and create large
agglomerations of solids. Water then flows up through inclined parallel plates.
As the solids make contact with the plates, they settle downward into the sludge hopper
for removal. The treated water is drawn off the top of the vessel for discharge or
transfer to the next process.

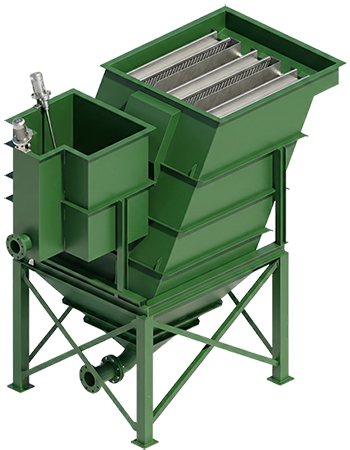

Ecologix Incline Plate Clarifier Features
Our TC-Series clarifiers utilize multiple tubular channels sloped at an angle of 60° to form
a very large settling area. The shallow settling depth of the design increases settling efficiency
and allows for higher flow rates. When the tube channels accumulate compacted sludge, the solids
slide downward into the hopper bottom for removal. Ecologix's unique clarifier design utilizes
tubes in place of plates to achieve greater surface area in a dramatically reduced footprint.
Epoxy Coated, Carbon Steel Tank
Flash/Floc Mixing Tanks with Mixers
Plate Packs
Clarifier Installation

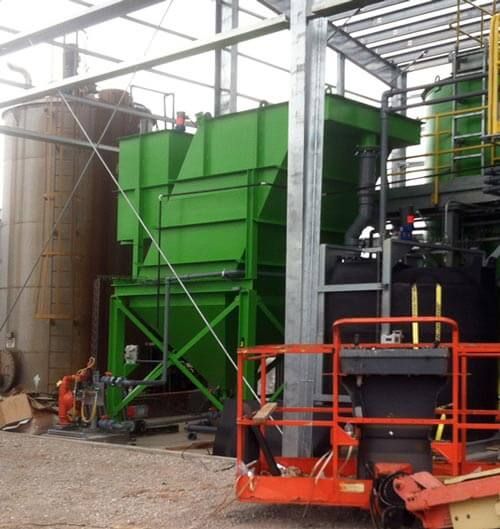

Our 200 gallon/minute incline plate clarifier system (LC-200) is shown at its installation
at Dow Chemical in Mississippi. The system includes a flow equalization tank, integrated
flash mix tank, effluent holding tank, pumps, controls, and mezzanine for maintenance
access.
Incline Plate (LC Series) Clarifier System Specifications
