How the Bio-Clear System Works

The Bio-Clear system relies on the extended-aeration activated-sludge process. This modification of conventional activated sludge operates at long solids retention times (SRT) and low food-to-microorganism (F/M) ratios. In extended aeration, microorganisms remain predominantly in an endogenous respiration phase. This approach minimizes net sludge production while achieving thorough organic oxidation and nitrification.

Wastewater first enters an equalization tank or zone that dampens flow and load variations common in small-flow or batch discharges. Flow then moves into the aeration tank. Fine-bubble diffused aeration supplies dissolved oxygen and generates a vigorous rolling action throughout the tank volume. Tank bottoms and sidewalls incorporate filleted geometry to eliminate dead zones, prevent solids accumulation, and ensure complete mixing. This design maintains mixed-liquor suspended solids (MLSS) concentrations of 2,500 to 4,000 mg/L in uniform suspension and supports efficient oxygen transfer.

Aerated mixed liquor flows by gravity into a secondary clarifier. Biomass settles and returns to the aeration tank via air-lift or pump. Operators periodically waste a portion of settled sludge to a dedicated sludge-holding tank for aerobic digestion. Clarified effluent proceeds to optional tertiary polishing, disinfection, and final discharge or reuse.

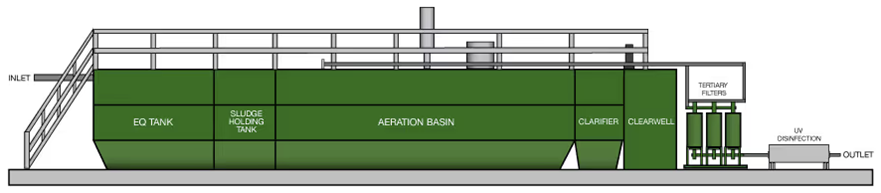

A typical flow path includes the following steps:

1. Influent screening and equalization.
2. Extended aeration with 18 to 36 hour hydraulic retention time.
3. Gravity clarification with sludge return.
4. Sludge holding and aerobic digestion.
5. Effluent polishing as required.

Design Calculations and Performance Considerations

Typical Design Basis Bio-Clear systems are engineered primarily for domestic and light commercial wastewater flows. Standard sizing assumes the following influent characteristics:

• BOD₅: 200-300 mg/L
• TSS: 200-350 mg/L
• Total Kjeldahl Nitrogen (TKN): 35-60 mg/L
• Temperature: 10-25 °C (design minimum 5 °C)
• pH: 6.5-8.5
• Peak flow factor: up to 3x average daily flow for short durations

These parameters represent typical residential, small community, institutional, and light commercial loading. Higher-strength or industrial flows (for example, food processing or septage) are readily accommodated by adding appropriate pre-treatment such as screening, equalization, or DAF, with the core biological process then sized accordingly. Site-specific wastewater characterization or treatability studies are always recommended to confirm or adjust tank volumes, aeration capacity, and nutrient removal requirements.

We size the aeration tank using hydraulic retention time (HRT) rather than conventional loading rates. HRT is calculated as:

For domestic-strength wastewater with BOD₅ approximately 200 to 300 mg/L, systems typically target 18 to 36 hours HRT. A 20,000 GPD facility, for example, employs an aeration volume of roughly 25,000 to 40,000 gallons. This yields an HRT of 30 to 48 hours under peak conditions. Longer retention times provide substantial buffering against cold-weather temperature drops and shock loads. Typical volumetric organic loading rates fall in the range of 8-15 lb. BOD₅ per 1,000 ft³ per day, with secondary clarifier surface overflow rates maintained below 400-600 gal/day/ft² to ensure excellent solids separation.

Oxygen demand arises primarily from carbonaceous BOD removal and endogenous respiration. A practical estimate uses:

Diffused-air blowers deliver 1.5 to 2.0 lb. O₂ per horsepower-hour at standard conditions. Coarse- or fine-bubble diffusers are selected according to site elevation and tank depth. In practice, a 20,000 GPD unit operating at 250 mg/L influent BOD and 85 percent removal consumes approximately 40 to 60 scfm of air. Two redundant blowers supply this demand. Blower power consumption ranges from 1.0 to 2.0 kWh per 1,000 gallons treated for domestic-strength wastewater, depending on site elevation, diffuser efficiency, and DO setpoints. Field oxygen transfer efficiency is influenced by the α-factor (typically 0.4-0.6 in mixed liquor) and diffuser fouling; periodic cleaning and conservative blower sizing help maintain long-term aeration performance.

Sludge yield remains low because of the high SRT of 20 to 40 days. The observed yield coefficient (Y_obs) typically ranges from 0.1 to 0.3 kg VSS per kg BOD removed, compared with 0.5 to 0.6 kg/kg in conventional systems. A plant removing 40 lb. BOD per day therefore produces only 4 to 12 lb. of dry solids daily. This substantially reduces hauling costs and required digester volume.

Sludge Wasting and Digestion Waste sludge is periodically transferred from the clarifier to the dedicated sludge-holding tank using air-lift pumps or small submersible pumps. Because of the long solids retention time (20-40 days) and endogenous respiration, the sludge undergoes aerobic digestion in the holding tank. Operators typically waste sludge every 30 to 90 days, depending on actual loading and observed sludge volume index. After digestion, the sludge reaches 2-4 % solids concentration, making it easier to decant supernatant and reduce the volume requiring removal.

Bio-Clear performance further depends on maintaining an F/M ratio of 0.05 to 0.15 lb. BOD₅ per day per lb. MLSS and an SRT sufficient for nitrification where ammonia limits apply. Filleted tank geometry ensures uniform MLSS distribution and prevents short-circuiting. Operators maintain dissolved oxygen at 1.5 to 2.5 mg/L and adjust blower output as needed.

Typical removal efficiencies follow the expression:

Under design conditions, the system achieves 85 to 95 percent BOD₅ and TSS reduction.

Process Resilience Under Variable Conditions The extended-aeration process with long hydraulic retention times (18-36 hours) and high MLSS inventory provides inherent buffering against variations in loading and temperature. The system is designed to accommodate peak flows up to 3x average daily flow for limited durations without significant loss of effluent quality. Low-flow periods are equally well managed because the large aeration volume and sludge inventory prevent washout of biomass and maintain biological activity.

Temperature effects are addressed through both process design and optional tank burial. Nitrification remains stable above approximately 10 °C; below this, performance is supported by maintaining elevated dissolved oxygen levels, reduced wasting rates, and (where needed) supplemental alkalinity. In cold-climate installations, burial significantly dampens diurnal and seasonal temperature swings, keeping mixed-liquor temperatures in the 12-15 °C range even when ambient conditions are extreme. These design features allow the Bio-Clear system to deliver consistent secondary treatment across a wide range of operating conditions when properly sized for the site-specific wastewater profile. Nitrification consumes approximately 7.14 mg alkalinity as CaCO₃ per mg ammonia-nitrogen oxidized; anoxic zone options help recover alkalinity through denitrification while reducing total nitrogen.

Burial for Temperature Stability in Cold Climates

Burial leverages the high thermal mass and insulating properties of soil. A simplified steady-state heat-loss estimate uses the conduction equation:

where:

• Q = heat loss (BTU/hr.),
• U = overall heat-transfer coefficient (BTU/hr·ft²·°F),
• A = surface area (ft²),
• ΔT = temperature difference between mixed liquor and ambient.

At 9 ft burial depth, soil temperature typically stabilizes near 45-55 °F (7-13 °C) year-round in temperate to cold regions, far warmer than winter air (which can reach -20 °F or lower in Wyoming). This reduces U dramatically compared with above-grade insulated tanks and keeps mixed-liquor temperature in the 12-15 °C range needed for reliable nitrification. In the Dave Johnston Power Plant installation, three small heaters supplemented the buried design during extreme cold, avoiding full insulation costs.

Key Engineering Features and Benefits

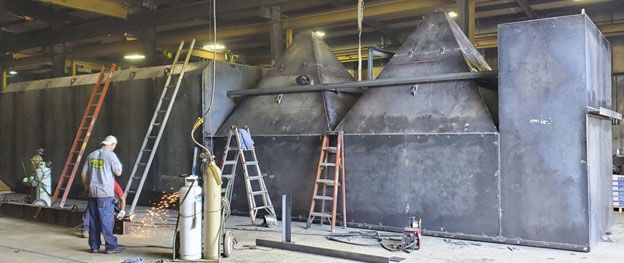

Bio-Clear systems use epoxy-coated carbon steel construction for corrosion resistance in wastewater service. Larger units ship in modular sections for field welding or bolting on site. This approach enables rapid assembly in remote locations. Principal advantages include the following:

• Compact footprint that occupies roughly the area of two standard shipping containers for a 20,000 GPD plant.
• Rapid deployment, with typical systems installed, filled, seeded, and operational within approximately one week.
• Low sludge production, with extended-aeration operation and long SRT reducing biosolids volume by 50 to 70 percent versus conventional activated-sludge plants.
• Energy-efficient operation through optimized diffuser placement and rolling mixing action that achieves high oxygen-transfer efficiency.
• Minimal operations and maintenance requirements supported by automated controls and few moving parts.
• Cold-climate suitability, with tanks designed for burial to maintain stable process temperatures.
• Regulatory compliance with 10-State Standards and a long-term performance track record exceeding 25 years in the field.

Specifications and Effluent Quality

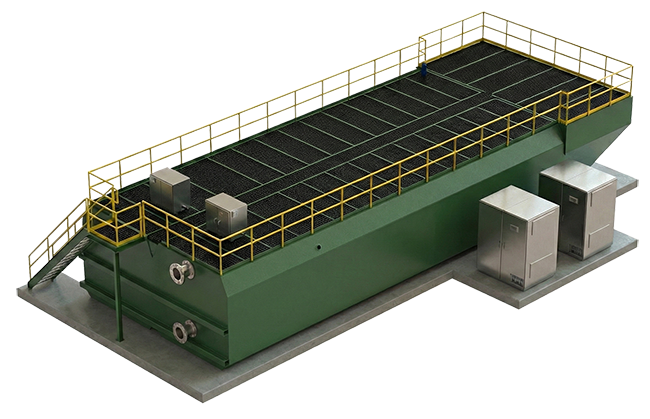

Bio-Clear models span capacities from the BC-3-ES at 3,000 GPD to the BC-100-ES at 100,000 GPD, with intermediate sizes available varying increments. Each unit forms a self-contained package that includes equalization, aeration, clarification, sludge holding, and control systems.

Standard effluent quality, before addition of tertiary polishing equipment, from the core biological process is BOD₅ below 30 mg/L and TSS below 30 mg/L.

Meeting Stringent Discharge Permits

Modern NPDES permits frequently impose limits tighter than secondary standards, particularly in nutrient-sensitive watersheds or reuse scenarios. The table below summarizes common very-low effluent targets.

Modular tertiary stages, including multimedia filtration, granular activated carbon, ultrafiltration, or integration with MBR technology, enable reliable achievement of these limits. Such enhancements also support water reuse applications such as irrigation or cooling, thereby extending asset value and providing regulatory resilience.

Real-World Applications and Case Example

Bio-Clear packaged systems excel in decentralized settings where space, speed of deployment, and operational simplicity matter most. Typical applications include hospitals and medical campuses (requiring reliable, odor-controlled treatment independent of municipal sewers), hotels and resorts (handling strong seasonal flow variations), rural communities and off-grid residential developments (enabling new construction without sewer extensions), remote mining and oil-field camps (self-contained treatment for transient populations in harsh environments), light industrial sites, and power-generation facilities.

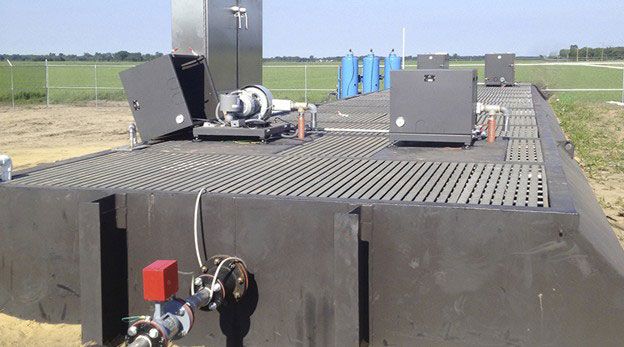

A notable installation is the Dave Johnston Power Plant in Glenrock, Wyoming. The plant replaced a nearly 40-year-old wastewater system with a BC-20-ES-CCT unit sized for 10,000-20,000 GPD. Harsh winters with wind chills to -80 °F necessitated partial burial 9 ft below grade for temperature stability. The design eliminated the need for extensive insulation and included minimal supplemental heating. This project demonstrates how burial, combined with the system's robust biological process, maintains reliable performance under extreme conditions while reducing overall project costs.

Comparison with Alternative Technologies

Optional Enhancements and Integration

The Bio-Clear's modular design allows straightforward addition of process enhancements either at initial construction or as future retrofits. These options expand treatment capability without requiring major civil works or plant replacement.

• Anoxic zones — Internal baffled zones or separate anoxic tanks promote denitrification. They convert nitrate to nitrogen gas, reliably achieving total nitrogen limits of 3-5 mg/L when paired with internal mixed-liquor recycle.
• Tertiary filtration packages (multimedia, activated carbon, or ultrafiltration) — These reduce residual TSS and BOD to <5-10 mg/L and can target phosphorus or trace organics, enabling water reuse or compliance with the strictest NPDES permits.
• Disinfection systems (UV or chlorination with dechlorination) — They provide reliable pathogen control to meet stringent fecal coliform or enterococcus limits while addressing total residual chlorine restrictions.
• PLC-based SCADA controls and remote telemetry — Automated monitoring of DO, MLSS, flow, and alarms reduces operator time to 30-60 minutes per day and allows remote troubleshooting, which is especially valuable for unmanned or remote sites.
• Dissolved air flotation (DAF) pre-treatment — This removes oils, grease, and high suspended solids from light industrial or food-processing flows before they reach the biological stage, protecting the extended-aeration process and preventing filamentous bulking.
• MBBR media addition or full MBR conversion — Moving-bed biofilm reactor (MBBR) media increases treatment capacity within the same tank volume. Full membrane bioreactor (MBR) retrofits produce effluent with BOD/TSS <5 mg/L and reliable solids separation, ideal for future capacity growth or ultra-low nutrient limits.
• Blower sound enclosures and ventilation packages — These minimize noise and help control odors for installations near occupied buildings or sensitive receptors.

All enhancements integrate using standardized piping and control interfaces, allowing field upgrades with minimal downtime.

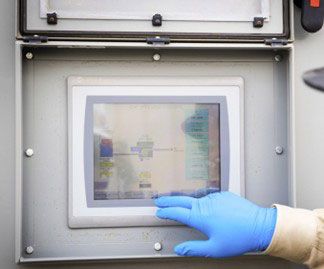

PLC-based control panel with HMI

Conclusion

For locations without practical sewer access, the Bio-Clear packaged sewage treatment system supplies a proven, low-maintenance, and regulatory-compliant solution. Its rapid deployment, compact footprint, low sludge yield, and strong cold-weather performance deliver clear advantages in construction schedules, operating costs, and long-term reliability. The system can be configured for simple secondary discharge or advanced nutrient removal and water reuse according to project requirements.

Glossary

• Extended Aeration: Activated-sludge process variant that uses long SRT (>20 days) and low F/M ratios to minimize sludge yield.
• HRT (Hydraulic Retention Time): Average time wastewater spends in the aeration tank, expressed in hours.
• F/M Ratio: Food-to-microorganism ratio, expressed as lb. BOD applied per day per lb. MLSS.
• MLSS (Mixed-Liquor Suspended Solids): Biomass concentration in the aeration tank, typically reported in mg/L.
• SRT (Solids Retention Time): Average time solids remain in the system, also known as sludge age, expressed in days.
• 10-State Standard: Design and construction guidelines adopted by multiple U.S. states for packaged wastewater treatment plants.
• NPDES: National Pollutant Discharge Elimination System permit program regulating point-source discharges.
• Endogenous Respiration: Metabolic phase in which microorganisms oxidize their own cellular material in the absence of abundant external substrate.

Frequently Asked Questions

Bibliography

1. Metcalf & Eddy, Inc. Wastewater Engineering: Treatment and Resource Recovery, 5th ed. McGraw-Hill, 2014.
2. U.S. Environmental Protection Agency. Design Manual: Onsite Wastewater Treatment and Disposal Systems. EPA 625/1-83-002, 1980 (updated 2002).
3. WEF Manual of Practice No. 8. Design of Municipal Wastewater Treatment Plants. Water Environment Federation, 2010.
4. Ecologix Systems. Bio-Clear Product Brochure and Engineering Specifications. Ecologix Environmental Systems, LLC, 2025.
5. U.S. EPA. NPDES Permit Writers' Manual. EPA-833-K-10-001, 2010.
6. Randall, C.W., et al. Design and Retrofit of Wastewater Treatment Plants for Biological Nutrient Removal. Technomic Publishing, 1992.
7. Water Environment Federation. Operation of Extended Aeration Package Plants. WEF, 2005.
