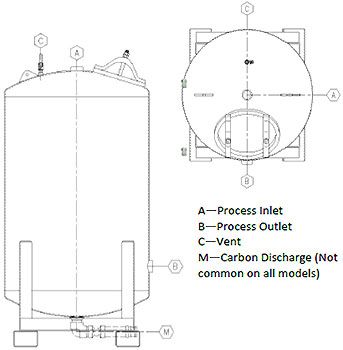

HPAF-Series Liquid Phase Filter Vessels
The HPAF filter series is a media filter vessel designed to treat liquid streams. While the typical design application is a activated carbon adsorbtion unit, the filter can easily accommodate many medias.
Features & Benefits
- Dissolved Organic Removal (Activated Carbon)
- Suspended Solids Removal (Sand Filter)
- Dissolved Minerals (Softener Resin)
- Oil and Grease Removal (Organo-Clays)
- Dissolved and Precipitated Metals Removal
- Special Organics (Resin/Carbon Blend)
- Catalytic Reactor (Chlorine and Peroxide Removal)
- Bio-Remediation Contactor Unit
Request a Pressure Filter quote
Quote RequestHPAF-Series Liquid Phase Filter Vessels
| Model | Optimal Flowrate | Overall Height | Diameter | Inlet/Outlet (FNTP) | Drain/Vent (FTNP) | GAC Fill (lbs) | Shipping/Operation Weight | Capacity (Gal) | Available Bed Volume | Max Pressure / Temperature |
|---|---|---|---|---|---|---|---|---|---|---|
| HPAF 500 | 8 - 25 GPM | 5' 11" | 30" | 2" | OPT | 500 | 850 / 1770 | 140 | 20 Ft3 | 75PSIG / 140° F |
| HPAF 1000 | 10 - 35 GPM | 72" | 36" | 2" | 1/2" / 1/4" | 1000 | 1535 / 3295 | 275 | 35 Ft3 | 75PSIG / 140° F |
| HPAF 2000 | 15 - 70 GPM | 8'6" | 48" | 3" | 3/4" / 1/2" | 2000 | 3020 / 6775 | 570 | 75 Ft3 | 75PSIG / 140° F |
| HPAF 3000 | 25 - 120 GPM | 8'11" | 60" | 3" | 1" / 1/2" | 3000 | 3505 / 10635 | 890 | 117 Ft3 | 75PSIG / 140° F |
| HPAF 5000 | 35 - 165 GPM | 9'11" | 72" | 4" | 1 1/2" / 3/4" | 5000 | 7490 / 17860 | 1400 | 196 Ft3 | 75PSIG / 140° F |
| HPAF 10,000 | 60 - 300 GPM | 10'9" | 96"" | 6" FLNG | 2" / 1" | 10000 | 13800 / 31115 | 2916 | 400 Ft3 | 75PSIG / 140° F |
| HPAF 20,000 | 100 - 480 GPM | 15'10" | 120" | 8" FLNG | 2" / 1" | 20000 | 27250 / 68320 | 5831 | 780 Ft3 | 75PSIG / 140° F |
