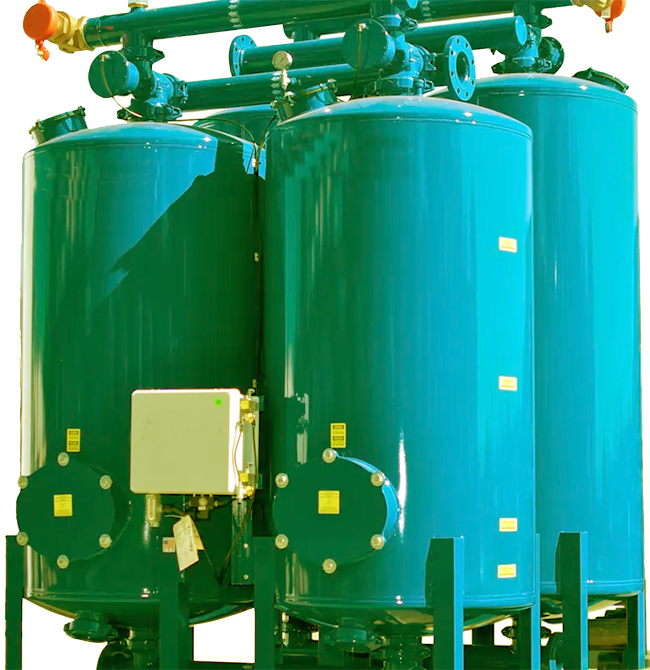

Granular Activated Carbon (GAC) Filters - (72" High)
Achieve superior removal of dissolved contaminants, chlorine, and odors with Ecologix Granular Activated Carbon (GAC) filtration systems. Leveraging the powerful absorptive properties of GAC media, these automatic filters effectively target compounds too small for conventional multi-media filtration. Ideal for eliminating chlorine, chloramines, organic chemicals, tastes, odors, halogenated organic compounds, and hydrocarbons, Ecologix GAC systems ensure high-quality water. Featuring a deep 72-inch vertical media bed and a simple, automatic backwash system, they provide extended operational cycles and consistent performance with minimal maintenance.
Request a Pressure Filter quote
Quote RequestStandard Features
- Made in the USA - ASME Code
- Fully Assembled and Tested
- Skid Mounted for easy installation and levelling
- Inlet/outlet and backwash manifolds
- PLC Controller, solenoids, electrical wire, tubing
- Standard carbon steel products, 3/16" thick material
- Backwash automatically initiated by elapsed time or pressure differential
- Easy-entry lid closure with weld tabs for operator safety
- Available in welded carbon steel
- ASME code shaped head construction for durability and safety
- Stainless steel wedgewire removable underdrain
- Structural integrity can withstand the harshest conditions
- Hydraulically balanced to increase effectiveness of backwash while reducing flush frequency and waste of water
- High strength stainless steel wedgewire will withstand a collapse pressure in excess of 600 psi
Applications
- Removal of chlorines, organic chemicals, taste and odor, halogenated organic compounds, hydrocarbons or other highly dispersed contaminants
- Polishing filter for contaminants not removed by other filtration systems
- 80 psi standard operating pressure (high pressure systems available)
- Flow ranges from 5 gpm
- Storm water runoff, industrial process water, incoming plant water, waste water clean-up, industrial water for plant reuse
- Oil & Fracking Water
- Construction Remediation
- Stormwater Remediation
- Municipal Process Water
- Nurseries & Greenhouses
Industrial Deep Bed Sand Media Filter Specifications
| Model | # Of Tanks | Min Flow Rates | Max Flow Rates | Chlorine Removal (gpm) | Activated Carbon Volume (cu ft) | Filtration Surface Area Ft2 | Backwash Flow Rate (per tank) | Media (Ft3) | Max Pressure | Inlet/Outlet Pipe Size | Backwash Pipe Size | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| US GPM | m3/hr | US GPM | m3/hr | US GPM | m3/hr | Gravel 1/2" - 3/4" | Media | ||||||||
| GAC-1872-1A | 1 | 9 | 2 | 18 | 4 | 35 | 7 | 1.77 | 18 | 4 | 1 | 7 | 100 psi | 2" | 2" |
| GAC-2472-1A | 1 | 16 | 4 | 32 | 7 | 60 | 13 | 3.15 | 32 | 7 | 2 | 13 | 100 psi | 2" | 2" |
| GAC-1872-2A | 2 | 18 | 4 | 35 | 8 | 71 | 14 | 3.54 | 18 | 4 | 2 | 14 | 100 psi | 2" | 2" |
| GAC-3072-1A | 1 | 25 | 6 | 50 | 11 | 90 | 20 | 4.91 | 50 | 11 | 3 | 20 | 100 psi | 3" | 3" |
| GAC-1872-3A | 3 | 27 | 6 | 53 | 12 | 106 | 21 | 5.31 | 18 | 4 | 3 | 21 | 100 psi | 3" | 2" |
| GAC-2472-2A | 2 | 32 | 7 | 64 | 15 | 120 | 25 | 6.30 | 32 | 7 | 3 | 25 | 100 psi | 3" | 2" |
| GAC-3672-1A | 1 | 35 | 8 | 70 | 16 | 135 | 28 | 7.10 | 71 | 16 | 4 | 28 | 100 psi | 3" | 3" |
| GAC-2472-3A | 3 | 48 | 11 | 94 | 21 | 180 | 38 | 9.45 | 32 | 7 | 5 | 38 | 100 psi | 3" | 2" |
| AC-3072-2A | 2 | 50 | 11 | 100 | 23 | 180 | 39 | 9.82 | 49 | 11 | 5 | 39 | 100 psi | 4" | 2" |
| AC-4872-1A | 1 | 63 | 14 | 126 | 29 | 240 | 50 | 12.60 | 126 | 29 | 7 | 50 | 80 psi | 4" | 4" |
| GAC-3672-2A | 2 | 70 | 16 | 140 | 32 | 270 | 56 | 14.20 | 71 | 16 | 8 | 56 | 100 psi | 4" | 4" |
| GAC-3072-3A | 3 | 75 | 17 | 150 | 34 | 270 | 59 | 14.73 | 49 | 11 | 8 | 59 | 100 psi | 4" | 2" |
| GAC-5472-1A | 1 | 80 | 18 | 160 | 36 | 300 | 64 | 15.91 | 159 | 36 | 10 | 64 | 80 psi | 4" | 4" |
| GAC-3672-3A | 3 | 105 | 24 | 210 | 48 | 405 | 84 | 21.30 | 71 | 16 | 12 | 84 | 100 psi | 4" | 4" |
| GAC-4872-2A | 2 | 126 | 29 | 252 | 57 | 480 | 100 | 25.20 | 126 | 29 | 14 | 100 | 80 psi | 6" | 4" |
| GAC-5472-2A | 2 | 160 | 36 | 320 | 73 | 600 | 127 | 31.82 | 159 | 36 | 19 | 127 | 80 psi | 6" | 4" |
| GAC-4872-3A | 3 | 189 | 43 | 378 | 86 | 720 | 150 | 37.80 | 126 | 29 | 21 | 150 | 80 psi | 6" | 4" |
| GAC-5472-3A | 3 | 240 | 55 | 480 | 109 | 900 | 191 | 47.73 | 159 | 36 | 29 | 191 | 80 psi | 6" | 4" |
| GAC-4872-4A | 4 | 252 | 57 | 504 | 115 | 960 | 200 | 50.40 | 126 | 29 | 28 | 200 | 80 psi | 8" | 4" |
| GAC-4872-5A | 5 | 315 | 72 | 630 | 143 | 1200 | 250 | 63.00 | 126 | 29 | 35 | 250 | 80 psi | 10" | 4" |
| GAC-5472-4A | 4 | 320 | 73 | 640 | 145 | 1200 | 254 | 63.64 | 159 | 36 | 38 | 254 | 80 psi | 8" | 4" |
| GAC-4872-6A | 6 | 378 | 86 | 756 | 172 | 1440 | 300 | 75.60 | 126 | 29 | 42 | 300 | 80 psi | 10" | 4" |
| GAC-5472-5A | 5 | 400 | 91 | 800 | 182 | 1500 | 318 | 79.55 | 159 | 36 | 48 | 318 | 80 psi | 10" | 4" |
| GAC-5472-6A | 6 | 480 | 109 | 960 | 218 | 1800 | 381 | 95.46 | 159 | 36 | 57 | 381 | 80 psi | 10" | 4" |

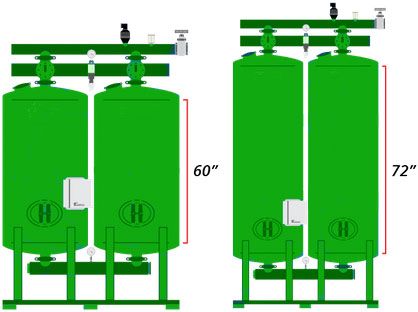

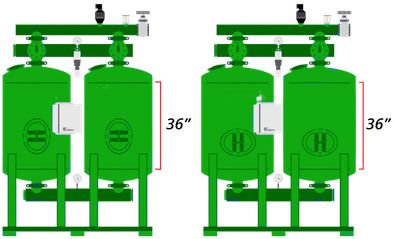

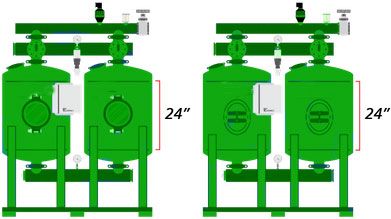

Multimedia Filter Scaling
A comparison of the available filter heights.
Available Options
- ASME Code Vessels
- Stainless Steel 304SS or 316SS
- High Pressure 90+ PSI
- PLC Integration
- Electric Valve Operation
- NEMA 4X Enclosure
- Custom Piping Design
Advantages
- Our filtration systems provide exceptional results, rigorously tested and tuned for industrial applications
- Self cleaning backwash features use water internal to the system
- Industrial grade stainless steel solenoids versus industry standard plastic solenoids
- 80 PSI max standard operating capable
- SS304 backwash control enclosure versus industry standard carbon steel or plastic
- Fabricated backwash manifolds
