Shock Loads in Industrial Wastewater: How Equalization Tanks Protect Your System, Biology, and Budget
Executive Summary
Industrial wastewater rarely arrives as a nice, steady stream. Instead, it comes in sudden surges known as shock loads that can cripple even the best-designed treatment systems. Whether it’s a hydraulic flood from a tank cleanout, a slug of high-BOD/COD organics from a batch dump, elevated FOG and TSS from production changeovers, sharp pH swings during CIP cycles, or temperature spikes, these events stress every downstream process. Biology crashes, coagulation fails, chemical consumption skyrockets, effluent violations pile up, odors erupt, and sludge handling costs explode. The result is lost production time, hefty surcharges from the local POTW, and the constant headache of “why did the plant go septic again?”
A properly designed equalization tank (EQ tank) is the quiet hero that prevents these disasters. By providing hydraulic and organic buffering, typically with 8-24 hours of hydraulic retention time (HRT), aggressive mixing, and controlled aeration, it smooths out peaks and valleys before wastewater ever reaches chemical reaction tanks, Floctubes, dissolved air flotation (DAF) units, clarifiers, or biological systems. The benefits are immediate and measurable: stable pH and temperature protect sensitive nitrifiers and floc-forming bacteria, consistent influent quality slashes coagulant and polymer volume demand by 20-40% (driving down overall chemical costs by 30-50%), effluent variability drops dramatically, and compliance becomes routine rather than reactive. Operators report fewer nighttime call-outs, lower sludge production, and real budget relief from reduced hauling and surcharge fees.
This article walks through the real-world sources and impacts of shock loads, the engineering principles behind effective EQ tank design, practical sizing calculations, integration with best-practice components, and operator-tested tips that turn theory into reliable performance. Whether you run a food-processing plant, metal-finishing line, or any batch-driven facility, you'll leave with actionable insights to protect your system, your biology, and your bottom line.

Table of Contents
- Understanding Shock Loads in Industrial Wastewater
- The High Cost of Unmanaged Shock Loads
- How a Properly Designed Equalization Tank Works
- Key Design Parameters and Sizing Calculations
- Integration with Downstream Processes
- Practical Operator Tips for Reliable EQ Performance
- Conclusion
- Glossary
- Frequently Asked Questions
- Bibliography
Understanding Shock Loads in Industrial Wastewater
Shock loads are sudden, short-duration changes in flow rate or wastewater characteristics that exceed the design capacity of downstream treatment units. They fall into four main categories:
- Hydraulic shock loads: Instantaneous flow spikes (example, 3-5x average flow) from simultaneous tank dumps or shift changes.
- Organic shock loads: Spikes in BOD, COD, FOG, or TSS which is common after batch processing, fryer cleanouts, or product changeovers.
- pH and chemical shock loads: Rapid swings to extreme values (often pH < 2 on the acid side and pH > 12 on the caustic side) from acid/caustic CIP rinses or neutralization dumps.
- Temperature shock loads: Hot process water (>40 °C) or cold winter flushes that stress microbial communities.
These events originate from batch manufacturing, clean-in-place (CIP) cycles, tank cleanouts, and unplanned production dumps. In food and beverage plants, a single CIP cycle can send 5,000-15,000 gallons of high-pH, high-detergent, high-FOG water in under 30 minutes. Metal finishers often see sudden spikes in heavy metal concentrations (like copper, zinc, or nickel) and concentrated plating bath dumps. Any facility with intermittent processes is vulnerable.
The High Cost of Unmanaged Shock Loads
Without buffering, shock loads trigger a cascade of expensive failures:
- Biology crashes: Nitrifying bacteria die at pH <6.5 or >8.5; heterotrophs are inhibited by sudden FOG or temperature drops. Recovery can take days to weeks.
- Poor coagulation/flocculation: Variable pH and organics destroy floc formation, forcing operators to overdose chemicals.
- Higher chemical use and sludge production: Coagulant and polymer demand can double; excess sludge increases dewatering and disposal costs.
- Permit violations and surcharges: TSS/BOD/FOG excursions trigger fines and POTW surcharges that routinely exceed $10,000 per month.
- Odors and corrosion: Poorly mixed or unaerated EQ tanks can turn anaerobic, generating hydrogen sulfide (H₂S) and causing odors plus corrosion in downstream piping and equipment.
- Downstream process upsets: Without adequate equalization, shock loads reach clarifiers and DAF units, resulting in rising sludge blankets, floc collapse, and solids carryover.
- System upsets and downtime: Pumps cavitate, air diffusers foul, and operators chase parameters instead of running the plant.
One Midwestern food processor tracked $187,000 in annual surcharges and polymer overuse before installing proper equalization. These costs disappeared within six months of commissioning.
How a Properly Designed Equalization Tank Works
An equalization tank acts as both a hydraulic damper and a blending vessel. Wastewater enters at variable rates and leaves at a controlled, steady flow. Three critical functions make it effective:
- Hydraulic buffering - Stores peak flows and releases them evenly.
- Constituent blending - Mixes high- and low-strength batches to deliver uniform pH, temperature, and organic loading.
- Limited pre-treatment - Gentle aeration or mixing prevents septicity while avoiding excessive oxygen demand on downstream biology.
Equalization tanks are engineered with these functions in mind, often integrated upstream of chemical reaction tanks and dissolved air flotation systems.
The Mandatory Gatekeeper: Upstream Screening
While an EQ tank excels at blending and buffering liquids, it is not a trash can. A successful equalization strategy must begin before the wastewater ever enters the tank. Installing robust upstream mechanical screening such as a drum or static screen is vital to capture large debris, rags, plastics, and raw scraps. Without this baseline protection, coarse solids will rapidly wrap around submersible mixers, risk immediate motor burnout and turning the floor of your EQ tank into a heavy grit-settling nightmare that severely compromises active volume.
Key Design Parameters and Sizing Calculations
Proper EQ tank design begins with a detailed flow and load profile, ideally 24-hour composite data collected over multiple production cycles, including worst-case cleaning or batch-dump days. Equalization tanks must be sized for peak conditions, not average flow. Sizing on average flow is a common error that leaves the tank undersized exactly when the plant needs buffering the most.
Key parameters include:
- Hydraulic Retention Time (HRT): On peak-flow days, target a minimum of 6-12 hours depending on downstream process sensitivity and how variable the flow is. Batch-heavy or CIP-intensive plants often need the higher end of this range on cleaning days. Mild diurnal municipal patterns can sometimes be managed with 4-8 hours.
- Mixing energy: 0.01-0.03 hp per 1,000 gallons to keep solids suspended, prevent stratification, and avoid septicity without excessive shear.

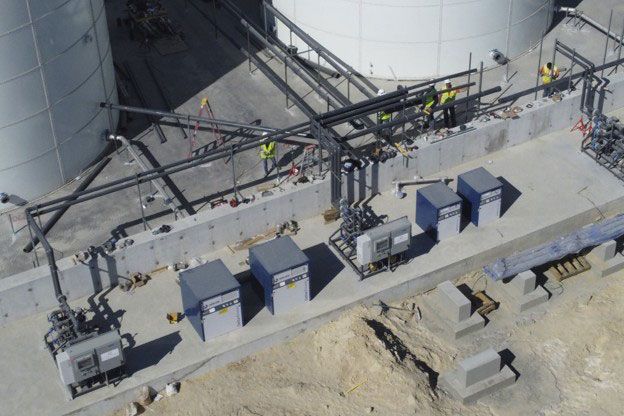

- Aeration: Optional diffused air (typically 0.5-1.5 scfm per 1,000 gallons) to maintain 1-2 mg/L DO for odor control and to suppress sulfide formation. Over-aeration should be avoided.
The fundamental relationship is:
where V is the active tank volume (gallons) and Q is the flow rate (gallons per hour).
Example calculation (peak-day method): A plant averages 50,000 gpd but produces up to 150,000 gpd on cleaning days. On those peak days the average flow rate into the EQ tank is:
To maintain at least 8 hours of HRT even on cleaning days (a practical minimum for most industrial systems), the required volume is:
Adding 20-30 % freeboard and operational safety factor brings the recommended tank size to approximately 65,000-70,000 gallons.
For highly variable or bursty flows, the more accurate mass diagram (ripple diagram) method should be used. Plot cumulative inflow volume versus time for the worst-case day(s). Draw a straight line representing the constant outflow rate you intend to send downstream. The maximum vertical distance between the cumulative inflow curve and the outflow line equals the minimum storage volume required to prevent overflow while smoothing flow. This graphical method accounts for the actual timing of peaks and gives the true minimum tank volume needed.

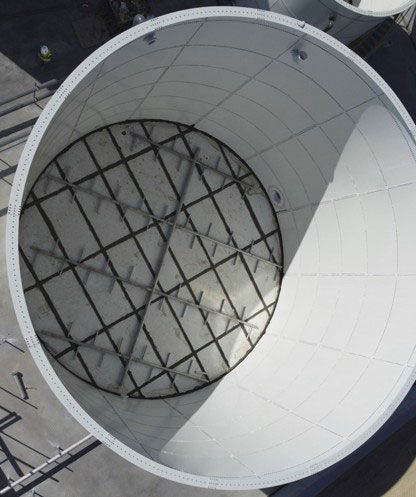

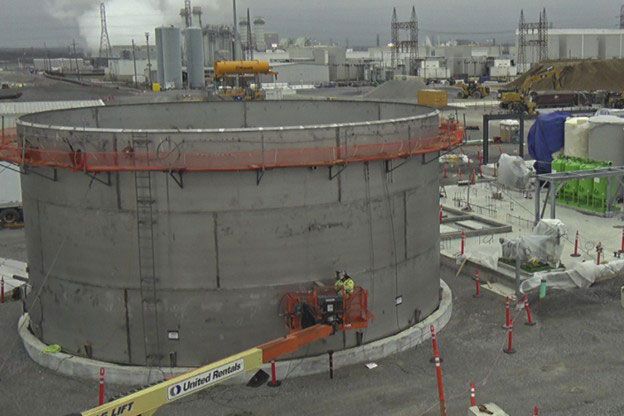

Once the required volume is known, the tank geometry (circular, rectangular, or bolted-steel) can be selected based on site constraints, mixing/aeration equipment layout, and access for cleaning.

The Low-Water Vortex: Protecting Dynamic Submersible Mixers
Because an EQ tank's primary job is to buffer hydraulic surges, its liquid level is inherently volatile. It is constantly climbing during peak production and draining down to a minimum during low-flow periods. This fluctuating depth introduces a major mechanical hazard: cavitation. If the water level drops too low, aggressive mixers will pull down a localized vortex of air. This starves the impeller, triggers violent shaft vibrations, destroys mechanical seals, and causes rapid motor burnout. To protect this equipment, design engineers must integrate strict low-level cutoffs into the SCADA logic or utilize variable-frequency drives (VFDs) that automatically de-energize or throttle mixer speed before the water line drops past the safe submergence threshold.
Table 1. Performance Comparison: Systems Without vs. With EQ Tank
| Parameter | No EQ Tank | EQ Tank | Improvement |
|---|---|---|---|
| Influent Flow Variation | ±300 % of average | ±20 % of average | 15× reduction |
| pH Swing Amplitude | 3–4 units in <1 hour | <0.5 units over 24 hours | 6–8× stabilization |
| BOD/COD Load Variation | ±200 % | ±15–25 % | 8–10× reduction |
| Coagulant/Polymer Cost | Baseline × 1.8–2.5 | Baseline | 30–50 % savings |
| Effluent TSS/BOD Compliance | Frequent violations | Consistent compliance | Near 100 % |
| Sludge Production | +25–40 % | Baseline | Lower hauling costs |
| Operator Call-outs | 4–6 per month | <1 per quarter | Dramatic reduction |
Data is compiled from field installations and industry case studies.
Integration with Downstream Processes
A well-designed EQ tank becomes the foundation for the entire treatment train. Stabilized flow and chemistry feed directly into:
- Chemical reaction tanks for precise pH adjustment and coagulant addition under steady-state conditions.

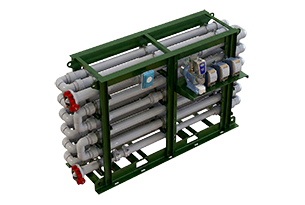

- Floctubes (or inline flocculation tubes) where gentle mixing creates strong, shear-resistant flocs without the turbulence that destroys fragile aggregates formed under shock conditions.
- Dissolved air flotation (DAF) units that now operate at design surface loading rates instead of being overwhelmed by variable solids and FOG.
- Clarifiers and biological systems (MBBR, activated sludge, or lagoons) that receive consistent organic loading, protecting SRT and preventing washout.
Practical Operator Tips for Reliable EQ Performance
- Install redundant submersible mixers on alternating timers. Never let the tank go stagnant.
- Monitor ORP or DO in the EQ tank; maintain +50 to +150 mV to suppress sulfide formation.
- Use a simple floating decanter or a variable-speed effluent pump controlled by EQ tank level algorithms to deliver a steady, consistent feed rate downstream.
- Schedule annual cleanouts (ideally during plant turnarounds) to inspect for grease mats or localized grit accumulation that your mixers can't move.
- Trend pH, temperature, and conductivity on a SCADA historian; sudden deviations often signal an upstream process change worth investigating.
- Consider coarse-bubble aeration on a timer during high-organic periods to provide just enough oxygen without over-aerating and robbing downstream biology.

Conclusion
Shock loads are an unavoidable reality in batch-driven industrial wastewater treatment, but they do not have to dictate your plant's performance, compliance record, or operating budget. A properly sized, mixed, and aerated equalization tank provides the hydraulic and chemical buffer that protects every downstream process, from chemical reaction tanks and Floctubes to DAF, clarifiers, and biological systems. By investing in thoughtful EQ design today, operators and engineers gain operational stability, lower chemical and sludge costs, reduced permit risk, and peace of mind that the biology will still be working when they walk in the door tomorrow morning.
The difference between a plant that constantly fights its wastewater and one that quietly and reliably treats it often comes down to one well-engineered tank at the front of the train.
Glossary
- Shock Load: Sudden change in flow rate, organic strength, pH, temperature, or toxicity that exceeds downstream process design limits.
- Equalization Tank (EQ Tank): Holding vessel that buffers hydraulic and constituent variations through storage, mixing, and blending.
- Hydraulic Retention Time (HRT): The active volume of a tank divided by the influent flow rate; represents the average theoretical time wastewater spends in the vessel under specific design or peak conditions.
- BOD (Biochemical Oxygen Demand): Measure of oxygen required by microorganisms to degrade organic matter.
- COD (Chemical Oxygen Demand): Measure of all chemically oxidizable organic and inorganic matter.
- FOG (Fats, Oils, and Grease): Lipid fraction that can cause coating, foaming, and inhibition in biological systems.
- TSS (Total Suspended Solids): Particulate matter that can overload clarifiers and DAF units.
- Coagulation: Addition of chemicals to destabilize colloidal particles.
- Flocculation: Gentle mixing to promote particle collision and floc growth.
- DAF (Dissolved Air Flotation): Clarification process using micro-bubbles to float solids and FOG.
- Floctube: An inline, pipe-based plug-flow reactor that uses controlled fluid turbulence and sequential chemical injection ports to promote particle aggregation without the need for large mixing tanks.
- SRT (Solids Retention Time): Average time solids (biomass) remain in a biological system.
- ORP (Oxidation-Reduction Potential): Measure of the tank's tendency to oxidize or reduce species; indicator of septicity risk.
- CIP (Clean-In-Place): Automated cleaning of process equipment that generates high-pH, high-detergent wastewater slugs.
Frequently Asked Questions
Q1: How do I know if my plant needs a larger equalization tank?
A: If you see frequent pH alarms, variable DAF performance, biology upsets after CIP or cleanouts, or monthly surcharge bills >$5,000, your current EQ volume is likely insufficient. Collect 24-hour flow and composite data for one week; if peak-to-average flow ratio exceeds 2.5:1 or pH swings >1.5 units, sizing for 12-18 hours HRT is usually warranted.
Q2: Should my EQ tank be aerated or just mixed?
A: Effective mixing is mandatory in every equalization tank to prevent solids settling, stratification, and septicity. This can be accomplished with mechanical mixers (submersible or surface), diffused air systems, or hybrid approaches. Many industrial plants successfully use coarse-bubble diffused aeration because it simultaneously provides excellent mixing and a baseline level of dissolved oxygen. Add (or increase) aeration when you need odor control, want to suppress sulfide formation, or desire minor pre-oxidation of organics/FOG. In high-strength industrial wastes (food processing, rendering, etc.), light aeration is often standard practice rather than an optional add-on. However, avoid over-aeration. Excessive air can strip CO₂ (raising pH and potentially upsetting downstream chemical dosing), supply too much dissolved oxygen that wastes significant energy, shears fragile solids, or short-circuit denitrification by encouraging unwanted aerobic conditions too early in the train. Target 1-2 mg/L DO when aerating an EQ tank. This range keeps conditions aerobic enough to control odors without turning the EQ into an unintended activated-sludge basin. Monitor with DO probes and ORP; many operators run aeration on timers or demand-based controls tied to real-time readings rather than continuously at full output. Mechanical mixing alone (0.01-0.03 hp per 1,000 gallons) is perfectly acceptable for lower-strength or low-odor-risk streams and is often more energy-efficient when oxygen transfer is not required.
Q3: What mixing power is required?
A: Industry rule of thumb for mechanical mixing in equalization tanks is 0.01-0.03 hp per 1,000 gallons of tank volume. This provides enough energy to keep solids in suspension, prevent stratification, and avoid septicity without excessive shear or power consumption. For a 50,000-gallon active volume, this translates to roughly 0.5-1.5 total horsepower. A common practical installation is two 1-hp or 1.5-hp submersible mixers operated on alternating 15-30 minute cycles (or duty/standby). This setup delivers reliable blending, redundancy, and energy efficiency while minimizing wear. Slightly higher power may be warranted for high-TSS, high-FOG, or viscous wastes. Always confirm final mixer sizing with the manufacturer based on tank geometry, baffle placement, and wastewater characteristics.
Q4: Can an EQ tank replace chemical feed entirely?
A: No. An equalization tank is a stabilizer, not a replacement for chemical treatment. It smooths out variations in flow, pH, organics, and temperature, which makes downstream chemical addition far more effective and efficient. However, you will still need precise pH adjustment, coagulation, and flocculation to destabilize colloids, form strong flocs, and achieve reliable solids/FOG removal before your DAF, clarifier, or biological system. These chemical steps typically happen in dedicated chemical reaction tanks, inline Floctubes, or flash-mix/flocculation zones. With consistent influent from a properly designed EQ tank, your chemical feed systems can run at steadier, usually lower dosages because they are no longer fighting wild swings. Operators often report better floc quality, less chemical overuse, and more reliable performance overall. While field data shows typical chemical cost savings of 30-50%, the exact reduction for your facility will depend on your specific wastewater profile (strength, buffering capacity, FOG/TSS content, etc.). In practice, the biggest operational wins are improved process stability and fewer 'chasing' adjustments throughout the day.
Q5: How often should I clean my EQ tank?
A: Annually (or during scheduled plant turnarounds), provided your mixing system is properly keeping solids suspended. Operators should periodically check for grease mats or localized grit accumulation, but a full cleanout is typically an annual maintenance item.
Q6: Will adding EQ volume increase my overall plant footprint significantly?
A: Not necessarily. Many plants repurpose existing tanks or install above-ground bolted-steel EQ tanks that fit in tight spaces. The long-term savings in chemicals, sludge hauling, and compliance usually pay back the investment within 24 months.
Q7: What happens if my EQ tank is undersized during a major production spike?
A: You’ll see breakthrough of untreated slugs into the DAF and biology. Immediate symptoms include white foam in the DAF, rising sludge blankets, and falling DO in aeration basins. Operators often respond by dumping polymer and raising air, but the root fix is more EQ volume.
Q8: How does EQ tank performance affect my final effluent permit?
A: It has a major, often decisive impact. Your final effluent permit is based on what leaves the plant, and a well-designed equalization tank directly improves the consistency of that discharge. By delivering stable flow, pH, temperature, and organic loading to the downstream treatment processes, the EQ tank helps your DAF, clarifier, or biological system operate closer to design conditions. This typically results in much tighter effluent variability for key permit parameters such as TSS, BOD/COD, FOG, pH, and flow rate. Plants that previously struggled with monthly or quarterly excursions and permit violations frequently achieve near-perfect compliance after optimizing equalization. Fewer spikes mean fewer reportable exceedances, lower risk of enforcement actions, and reduced POTW surcharges. In short, a properly functioning EQ tank is often one of the highest-ROI investments you can make for long-term permit reliability.
Bibliography
- [1] Metcalf & Eddy, Inc. Wastewater Engineering: Treatment and Resource Recovery, 5th Edition. McGraw-Hill Education, 2014.
- [2] Water Environment Federation. Design of Water Resource Recovery Facilities, Manual of Practice No. 8, 6th Edition. Alexandria, VA, 2017.
- [3] Grady, C.P.L., Daigger, G.T., Love, N.G., Filipe, C.D.M. Biological Wastewater Treatment, 3rd Edition. CRC Press, 2011.
- [4] Goel, R.K., Flora, J.R.V., and Chen, J.P. “Flow Equalization and Neutralization.” In Physicochemical Treatment Processes (Handbook of Environmental Engineering, Vol. 3). Humana Press, 2005.
- [5] Water Environment Federation. Operation of Water Resource Recovery Facilities, Manual of Practice No. 11, 7th Edition. Alexandria, VA.
- [6] U.S. Environmental Protection Agency. Flow Equalization. EPA technical reports and NEPIS documents.
- [7] Tchobanoglous, G., Burton, F.L., Stensel, H.D. Wastewater Engineering: Treatment and Reuse, 4th Edition (Metcalf & Eddy). McGraw-Hill, 2003.
- [8] Ecologix Systems internal case studies and performance data (food-processing, bakery, and metal-finishing installations), 2023-2026.
- [9] Water Environment & Technology Magazine and related WEF articles on industrial pretreatment and equalization best practices (2018-2025).
- [10] U.S. EPA Process Design Manuals for Industrial Wastewater Treatment. Office of Research and Development.
