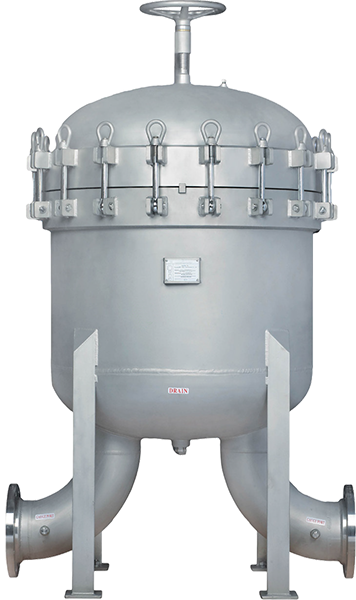

Multi Bag Liquid Filter Vessels (GMBV)
Ecologix Multi Bag Liquid Filter Vessels (GMBV Series) are designed for high flow and/or high contaminant load applications where clean effluent is critical. Vessels are designed with a V-Ring design with a positive snap that guards against by-passes to deliver clean effluent. The Multi-Bag Vessel can hold 4, 6, 8 or 12 bags.
Explore features
Request a Filter Vessel quote
Connect with our experts today
Filter Vessel Quote RequestFeatures
- Heavy-duty welded angle mounting/support legs
- RF Flanged “inline” inlet/outlet connections
- Bearing-assisted hand-wheel closure
- Permanent compression/hold-down plate
- Stainless steel support baskets (9/64” standard)
- Easy-access eye-nut/swing-bolt closure
- 304 or 316 stainless steel construction
- Snap-fit V-ring bag seal design
- 150 PSI pressure rating
- Single o-ring seal (Buna-N standard)
Options
- ASME Code Stamp
- CE Mark (SS only)
- Electropolished Finish (Stainless Steel Only)
- Mesh-lined/perforated baskets
- Alternate Seal Materials
- EPDM (required for NSF-61)
- Teflon® Encapsulated Viton®*
- Viton®*
NSF Certification applies for use only with drinking water. Only products bearing the NSF Mark on the product, product packaging, and/or documentation shipped with the product are Certified. Product options denoted with asterisk (*) are not included in the Certification.
Flow Rate
| Model | # of Bags | Bag Size | Basket Depth | EFA (ft2) | Max Flow Rate (GPM)* |
|---|---|---|---|---|---|
| GMBV430 | 4 | #2 | 30” | 17.6 | 600 |
| GMBV630 | 6 | #2 | 30” | 26.4 | 1200 |
| GMBV830 | 8 | #2 | 30” | 35.2 | 1600 |
| GMBV1230 | 12 | #2 | 30” | 57.8 | 2400 |
* Maximum flow rate recommended through the vessel without a filter bag installed using water. Increased viscosity and/or installed filter bags will reduce these flow rates significantly. Refer to the appropriate bag filter sizing chart or consult with a representative when sizing.
GMBV Series - Ordering Details
| # of Bags/Baskets | Basket Depth | Inlet/Outlet Size | Inlet/Outlet Style | Material | Pressure Rating | Surface Finish | ASME Stamp CE Mark | NSF |
|---|---|---|---|---|---|---|---|---|
| 4 | 30 = 30” | 4 = 4” / DIN100 | D = DIN Flange | 4 = 304SS | 15 = 150 PSI @ 250°F | GB = Glass Bead (SS Only) | Blank = None | Blank = None |
| 6 | 6 = 6” / DIN150 | F = RF Flange | 6 = 316SS | U = ASME | MC = NSF-61 | |||
| 8 | 8” / DIN200 | CE Mark (SS Only) | MC = NSF-61 | |||||
| 12 |
