How Enhanced DAF Systems Work: A Deep Dive into Micro-Bubble Flotation and Lamella Technology

The Foundation of E-DAF Technology

At Ecologix Environmental Systems, we've engineered the Enhanced Dissolved Air Flotation (E-DAF) to solve the two biggest complaints in industrial wastewater: footprint size and maintenance complexity.

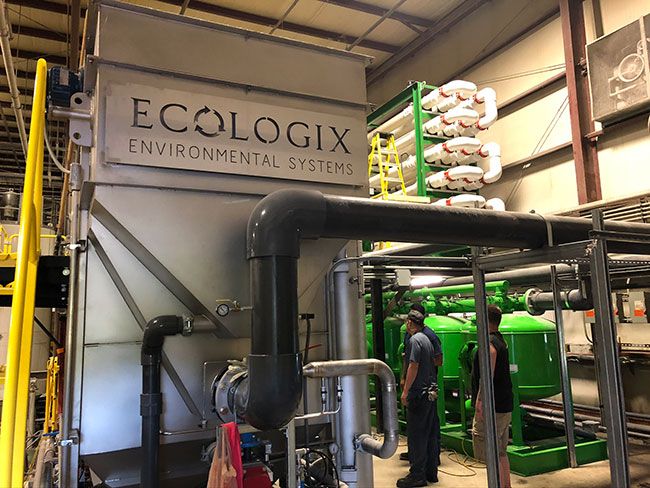

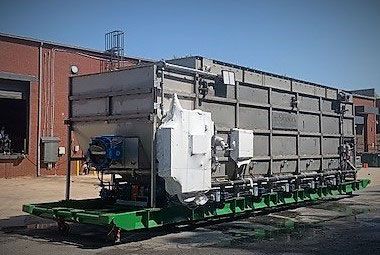

Constructed from heavy-duty stainless steel, these systems are designed for the harshest environments, including:

• Food Processing: High FOG (Fats, Oils, Grease) and TSS.
• Pulp & Paper: Fibrous solids recovery.
• Mining & Metal Finishing: High-turbidity and heavy metal precipitate removal.

The Engineering Breakdown (The 5-Step Process)

1. Precision Whitewater Generation

The heart of the system is the whitewater pump. By mixing clarified effluent with compressed air in a specialized saturation tank, we create a "cloud" of micro-bubbles ranging from 10 to 50 microns. This size is critical—too large, and they rise too fast without attaching; too small, and they lack the buoyancy to lift heavy floc.

2. Tangential Injection & Vortex Mixing

Most DAFs struggle with "dead zones" in the contact chamber. The E-DAF releases micro-bubbles tangentially into the inlet pipe. This creates a vortex that ensures every solid particle is "scrubbed" by bubbles before it even enters the main tank.

3. The Lamella Tube Advantage

While many competitors use high-density plates, Ecologix utilizes lamella tubes.

• Why Tubes? Tubes provide a massive increase in effective surface area while forcing the water into laminar flow. This quiet environment prevents the bubbles from being "knocked off" the solids, ensuring a much higher recovery rate of floatable particles.

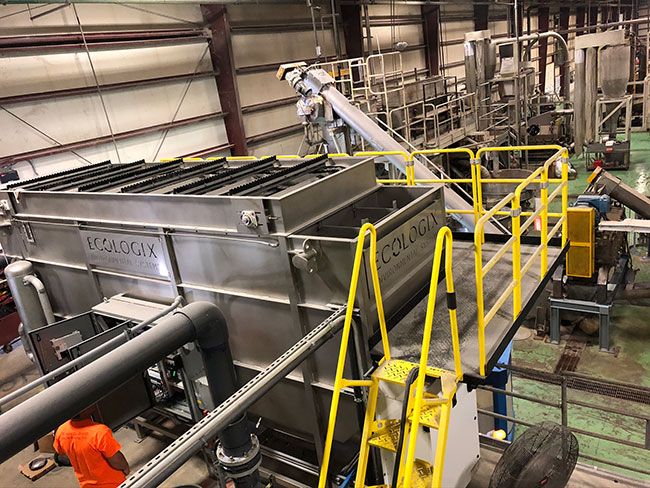

4. Counter-Current Sludge Removal

We utilize a counter-current scraper system. By moving the sludge toward the front of the unit into a dedicated holding tank, we prevent "carryover" into the clean water clearwell.

• Performance Metric: Our systems typically achieve a sludge dryness of 3% - 5% (30,000 - 50,000 mg/L), significantly reducing downstream dewatering costs.

5. Self-Cleaning Air Scouring

To maintain peak efficiency, the E-DAF includes compressed air laterals. This allows operators to "scour" the lamella tubes, preventing bio-fouling or solids buildup without needing to drain the tank.

Industry 4.0 Integration & Controls

In the modern industrial plant, if you can't monitor it, you can't manage it. The Ecologix control suite includes:

• Non-Proprietary Components: We use standard PLC/HMI hardware. You are never "locked-in" to Ecologix for simple replacement parts.
• SCADA & Mobile Ready: Full Ethernet/IP integration allows your team to monitor flow rates, chemical dosing, and system status from a smartphone or tablet.
• Smart Alerts: The system automatically notifies operators if whitewater generation falls below optimal levels, preventing compliance "accidents" before they happen.

Ecologix E-DAF System Performance & Technical Specifications

Feature	Specification / Capability
Materials of Construction	Heavy-gauge Stainless Steel (304, 316, or Duplex 2205)
Micro-Bubble Diameter	10 - 50 Microns (Optimized for maximum particle attachment)
Internal Flow Control	High-Efficiency Lamella Tube Technology
Saturation Method	Tangential Injection Vortex Saturation
Typical Removal Efficiency	TSS: 85-99% | FOG: 90-99% | BOD: 30-75%
Sludge Discharge Consistency	3.0% - 5.0% Solids (30,000 - 50,000 mg/L)
Solids Removal Method	Counter-Current Chain & Flight Scraper
Control System	PLC-based (Allen Bradley / Siemens) with Color HMI
Connectivity	Ethernet/IP, SCADA Integration, & Remote Mobile Access
Maintenance Features	Integrated Air-Scour System & Conical Solids Bottoms

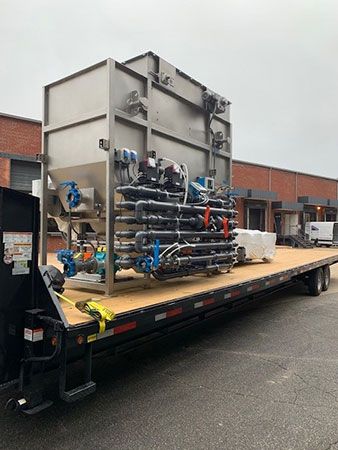

Pumping Systems	Industrial-Grade, Non-Proprietary (Easy local sourcing)

Why E-DAF Outperforms Traditional Clarifiers

Technical Specifications: E-Series DAF Performance Data

FAQs

1. What size micro-bubbles does an Ecologix DAF system generate?
   • The Ecologix E-DAF system generates micro-bubbles between 10 and 50 microns (µ). This precise size range is critical for industrial wastewater as it ensures optimal attachment to flocculated solids, providing maximum buoyancy without shearing the floc.
2. How do lamella tubes improve DAF performance?
   • Lamella tubes increase the effective surface area of the flotation zone while promoting laminar (quiet) flow conditions. By slowing down the water velocity, lamella tubes give micro-bubbles more opportunities to attach to solids, allowing for high-efficiency separation in a significantly smaller footprint than traditional settling clarifiers.
3. Can a DAF system handle settleable solids like sand?
   • Yes. While DAF systems primarily target floatable solids, the Ecologix E-DAF is designed with conical bottoms. This allows heavy, non-floating particles to settle and be periodically removed via a dedicated sludge pump, ensuring the system doesn't clog during high-turbidity events.
4. What is the typical sludge dryness from an Ecologix DAF?
   • Ecologix E-DAF systems typically produce sludge with a dryness range of 3% to 5% (30,000 to 50,000 mg/L). This concentration is significantly higher than traditional clarifiers, which results in lower sludge volume and reduced disposal or dewatering costs.

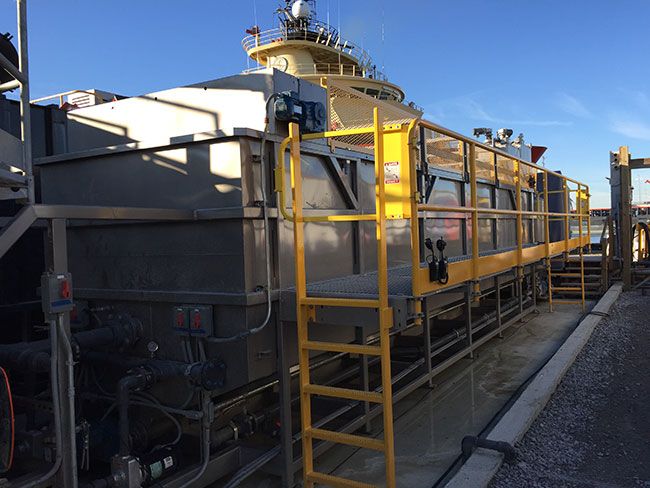

5. What flow rates can Ecologix DAF systems handle?
   • Ecologix E-series DAF systems are engineered for the North American market with capacities ranging from 130 GPM for compact applications to over 3,700 GPM for large-scale industrial and municipal wastewater treatment.
