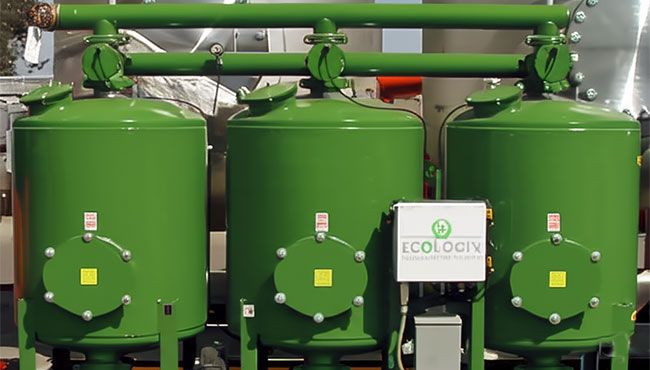

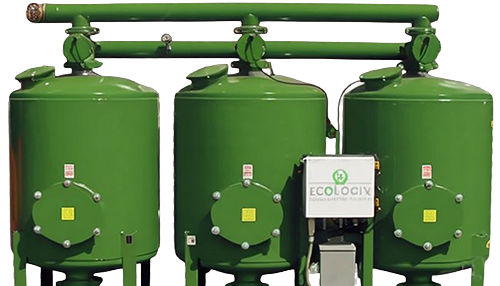

Sand Media Filters - Deep Bed (36" High)
Achieve reliable and low-maintenance water filtration down to 15 microns with Ecologix high-rate automatic backwashing deep bed sand media filters. Engineered for stringent general-purpose applications, these permanent media filters efficiently remove organic and inorganic suspended solids. The automated backwashing system ensures continuous "on-line" operation for extended periods, triggered by either elapsed time or pressure differential. During the brief backwash cycle, a portion of the system's own clean filtered water is used to regenerate the media in multi-tank systems, minimizing water waste. Single-tank systems utilize raw water for backwashing, with optional external backwash sources available for both configurations to optimize performance and water usage.
Request a Pressure Filter quote
Quote RequestStandard Features
- Made in the USA - ASME Code
- Fully Assembled and Tested
- Skid Mounted for easy installation and levelling
- Inlet/outlet and backwash manifolds
- PLC Controller, solenoids, electrical wire, tubing
- Standard carbon steel products, 3/16" thick material
- Backwash automatically initiated by elapsed time or pressure differential
- Easy-entry lid closure with weld tabs for operator safety
- Available in welded carbon steel
- ASME code shaped head construction for durability and safety
- Stainless steel wedgewire removable underdrain
- Structural integrity can withstand the harshest conditions
- Hydraulically balanced to increase effectiveness of backwash while reducing flush frequency and waste of water
- High strength stainless steel wedgewire will withstand a collapse pressure in excess of 600 psi
Applications
- Removal of organic and/or inorganic suspended solids down to 20 microns
- Pre-filtration in applications such as granular activated carbon, reverse osmosis, cartridge or bag filtration and deionized water
- Mining Industry
- Pre-Filtration for RO (Reverse Osmosis)
- Storm water runoff, industrial process water, incoming plant water, waste water clean-up, industrial water for plant reuse
- Oil & Fracking Water
- Construction Remediation
- Stormwater Remediation
- Municipal Process Water
- Nurseries & Greenhouses
Industrial Deep Bed Sand Media Filter Specifications
| Model | # Of Tanks | Min Flow Rates | Max Flow Rates | Filtration Surface Area Ft2 | Backwash Flow Rate (per tank) | Media (Ft3) | Max Pressure | Inlet/Outlet Pipe Size | Backwash Pipe Size | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| US GPM | m3/hr | US GPM | m3/hr | US GPM | m3/hr | Gravel 1/2" - 3/4" | Media | ||||||
| SM-1836-1A | 1 | 18 | 4 | 26 | 6 | 1.75 | 26 | 6 | 1 | 5 | 100 | 2" | 2" |
| SM-2436-1A | 1 | 32 | 7 | 47 | 11 | 3.15 | 47 | 11 | 2 | 8 | 100 | 2" | 2" |
| SM-1836-2A | 2 | 35 | 8 | 53 | 12 | 3.50 | 26 | 6 | 2 | 9 | 100 | 3" | 2" |
| SM-3036-1A | 1 | 49 | 11 | 74 | 17 | 4.91 | 74 | 17 | 3 | 12 | 100 | 3" | 3" |
| SM-1836-3A | 3 | 53 | 12 | 79 | 18 | 5.25 | 26 | 6 | 3 | 14 | 100 | 3" | 2" |
| SM-2436-2A | 2 | 63 | 14 | 95 | 22 | 6.30 | 47 | 11 | 3 | 15 | 100 | 3" | 2" |
| SM-3636-1A | 1 | 71 | 16 | 107 | 24 | 7.10 | 107 | 24 | 4 | 17 | 100 | 3" | 3" |
| SM-2436-3A | 3 | 95 | 22 | 142 | 32 | 9.45 | 47 | 11 | 5 | 23 | 100 | 3" | 2" |
| SM-3036-2A | 2 | 98 | 22 | 147 | 33 | 9.82 | 74 | 17 | 5 | 24 | 100 | 4" | 2" |
| SM-4836-1A | 1 | 126 | 29 | 189 | 43 | 12.60 | 189 | 43 | 7 | 34 | 80 | 4" | 4" |
| SM-3636-2A | 2 | 142 | 32 | 213 | 48 | 14.20 | 107 | 24 | 8 | 34 | 100 | 4" | 4" |
| SM-3036-3A | 3 | 147 | 33 | 221 | 50 | 14.73 | 74 | 17 | 8 | 36 | 100 | 4" | 2" |
| SM-3636-3A | 3 | 213 | 48 | 320 | 73 | 21.30 | 107 | 24 | 12 | 51 | 100 | 4" | 4" |
| SM-4836-2A | 2 | 252 | 57 | 378 | 86 | 25.20 | 189 | 43 | 14 | 67 | 80 | 6" | 4" |
| SM-4836-3A | 3 | 378 | 86 | 567 | 129 | 37.80 | 189 | 43 | 21 | 101 | 80 | 6" | 4" |
| SM-4836-4A | 4 | 504 | 115 | 756 | 172 | 50.40 | 189 | 43 | 28 | 134 | 80 | 8" | 4" |
| SM-4836-5A | 5 | 630 | 143 | 945 | 215 | 63.00 | 189 | 43 | 35 | 168 | 80 | 10" | 4" |
| SM-4836-6A | 6 | 756 | 172 | 1134 | 258 | 75.60 | 189 | 43 | 42 | 201 | 80 | 10" | 4" |

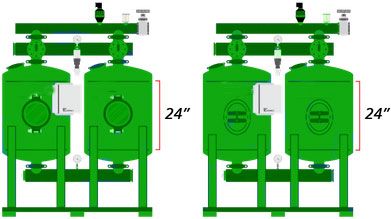

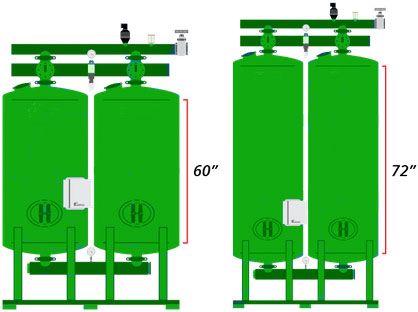

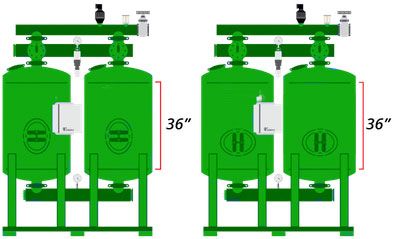

Multimedia Filter Scaling
A comparison of the available filter heights.
Available Options
- ASME Code Vessels
- Stainless Steel 304SS or 316SS
- High Pressure 90+ PSI
- PLC Integration
- Electric Valve Operation
- NEMA 4X Enclosure
- Custom Piping Design
Advantages
- Our filtration systems provide exceptional results, rigorously tested and tuned for industrial applications
- Self cleaning backwash features use water internal to the system
- Industrial grade stainless steel solenoids versus industry standard plastic solenoids
- 80 PSI max standard operating capable
- SS304 backwash control enclosure versus industry standard carbon steel or plastic
- Fabricated backwash manifolds
