Chemical Reaction Tanks
A vital addition for enhancing your DAF system's performance.
We also provide the option of adding separate chemical reaction tanks to our Enhanced DAF System. These tanks are crucial for pre-treatment processes, ensuring that wastewater is properly conditioned before entering the DAF unit. By facilitating precise chemical reactions like coagulation and flocculation, these tanks significantly boost the overall efficiency and effectiveness of the water treatment process.
Key Advantages
Easy Operation
Our chemical reaction tanks are designed for intuitive use, integrating seamlessly with your existing DAF system. Simple controls and minimal maintenance ensure your team can operate them efficiently without extensive training.
Greater Flexibility
These tanks provide a flexible solution to handle varying flow rates and water quality. Operators can easily adjust chemical dosage and reaction times, ensuring consistent treatment performance even under fluctuating conditions.
Enhanced Efficiency
By providing a dedicated space for chemical reactions, our tanks maximize contact time and effectiveness. This leads to superior particle agglomeration, which in turn significantly improves the DAF system's ability to remove solids and clarifies the water more effectively.
Typical Applications
Chemical reaction tanks are essential for a wide range of pre-treatment processes. They can be used for:
Coagulation and Flocculation:
Properly mixing coagulants and flocculants to destabilize particles and form larger, more buoyant flocs.pH Adjustment:
Automatically balancing the pH of wastewater to create optimal conditions for subsequent treatment steps.Oxidation/Reduction:
Facilitating chemical reactions to neutralize harmful compounds or prepare them for removal.
Chemical Reaction Tank Models




Model | L | W | H | Retention Time (Mins) DAF Model | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ft | m | ft | m | ft | m | 405 (130 GPM) | 505 (232 GPM) | 510 (462 GPM) | 515 (695 GPM) | 520 (925 GPM) | 815 (1155 GPM) | 820 (1540 GPM) | 825 (1924 GPM) | |

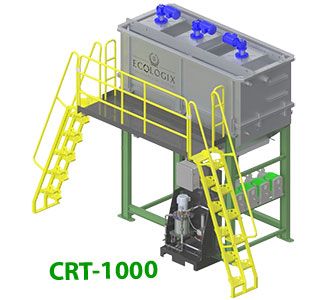

CRT-1000 | 10' | 3.0 | 4' 2" | 1.3 | 11' 10" | 3.6 | 7.69 | 4.31 | 2.16 | 1.44 | 1.08 | 0.87 | 0.65 | 0.52 |
CRT-1900 | 12' 1" | 3.7 | 5' 7" | 1.7 | 11' 10" | 3.6 | 14.62 | 8.19 | 4.11 | 2.73 | 2.05 | 1.65 | 1.23 | 0.99 |

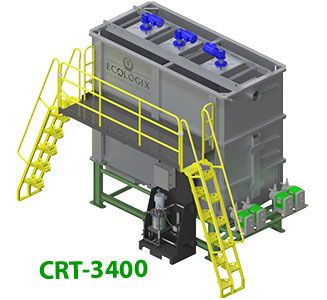

CRT-3400 | 12' 1" | 3.7 | 5' 7" | 1.7 | 11' 10" | 3.6 | 26.15 | 14.66 | 7.36 | 4.89 | 3.68 | 2.94 | 2.21 | 1.77 |

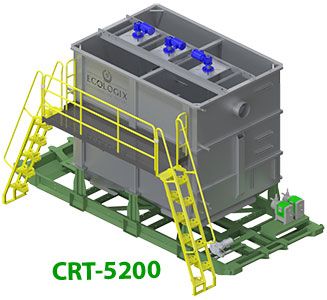

CRT-5200 | 12' 1" | 3.7 | 8' 6" | 2.6 | 11' 10" | 3.6 | 40.00 | 22.41 | 11.26 | 7.48 | 5.62 | 4.50 | 3.38 | 2.70 |
