Multi Plate Screw Press (MPSP) Rental

Our rental multi plate screw press is more advanced than traditional dewatering systems which can be easily blocked by low concentrated sludge. The Ecologix screw press allows for automatic continuous sludge flocculation, thickening, dewatering and filtrate discharging. The thickening zone allows the system to process both highly concentrated sludge as well as sludge with a high water content. Full details about our Multi Plate Screw Press (MPSP) Rental are available here.

Request an MPSP rental quote
MPSP Rental Quote Request

Dewatering System available for Rental

ModelDry Solids
Capacity (Lbs/h)
Sludge Treatment Capacity / Water Flow (gal/h)Dimensions (Ft)Weight
(Lbs)
Power
(kw)
10,000 ppm20,000 ppm30,000 ppm40,000 ppm50,000 ppmLWHNetOperating
MPSP-352220 - 4412641.72113.415851320.9~1,05714.45.474,6307,1653.3

MPSP Unique Features

  • Exclusive pre-thickening enables a wide solid concentration ranging from 10,000mg/l to 50,000 mg/l
  • High efficiency with a small footprint
  • Low power consumption (less than 5% of a centrifuge)
  • Very low water usage (less than 1% of an equivalent belt filter press)
  • Auto start-up, run and shutdown
  • Self cleaning
  • No blocking or backwash water
  • Double nozzles for superior cleaning and rinsing
  • Able to handle oily sludge as well as fibrous sludge
  • Sealed system = No odors/bad smell
  • Wear free
  • Sludge flow and cake monitoring system
  • Exclusive screw shaft for sludge thickening and inorganic material

MPSP System Components

  • 304 SS Screw, Shaft, Collection Basin, Flocculation Tank, Main Body
  • Sludge thickening & dewatering zone
  • Sludge flocculation tank
  • Filtrate collection tank
  • Automatic / Automated control panel
  • Fixed plates and moving plates instead of filter cloth
Multi Plate Screw Press Model ST-403

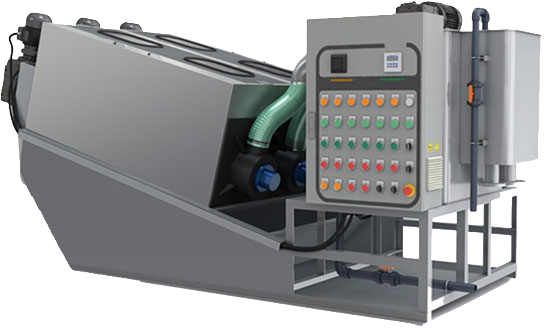

Multi Plate Screw Press Model ST-403 3-D Model

MPSP Common Industry Applications
