Sanitary cartridge filtration
Single Cartridge Sanitary Liquid Filter Vessels (GSTL)
Ecologix Single Cartridge Liquid Filter Vessels (GFHD Series) are designed for a variety of filtration applications. The filter vessels feature a ring nut closure for easy cartridge change out. They are available in either 304 or 316 stainless steel and rated for 300psi service.
Explore features
Request a Filter Vessel quote
Connect with our experts today
Filter Vessel Quote RequestFeatures
- Sanitary V-band closure operates easily and seals tightly
- Excellent cleanability with crevice-free welding and internal mirror electropolished finish
- Suitable for steam-in-place (SIP) and clean-in-place (CIP) processes
- Designed for 222 or 226 cartridge end cap configuration
- Standard with 1” TC inlet/outlet and 1/2” TC vent
- 1/2” TC inlet side drain port allows complete evacuation before change-out
- Available in 5”, 10”, 20”, 30”, and 40” lengths
- 316 stainless steel construction
- Silicone seal standard
- 150 PSI pressure rating at 200°F
- T-style port design
Applications
- High-purity water systems
- Active Pharmaceutical Ingredients
- Fine chemicals
- Wine, beer & spirits
- Blood & serum
- Cell culture media & diagnostics

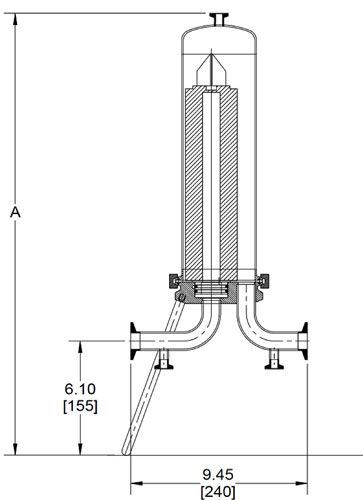

Sizes Available
| Nominal Length | OAL “A” |
|---|---|
| 5” | 18.7” (475mm) |
| 10” | 23.6” (600mm) |
| 20” | 33.5” (850mm) |
| 30” | 43.3” (1,100mm) |
| 40” | 53.2” (1,350mm) |
