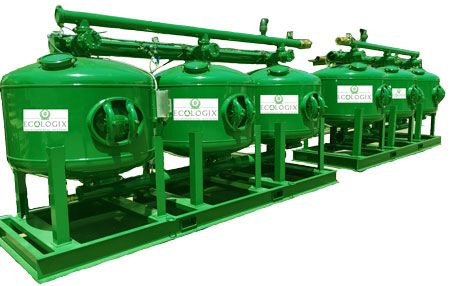

Sand Media Filters (24" High)
Industrial Sand Media Filters provide a reliable and cost-effective solution for achieving enhanced water quality by removing organic and inorganic suspended solids down to 20 microns. As versatile Multi-Media Filters, they can be implemented as a primary filtration stage or as essential pretreatment to protect downstream technologies. Featuring a 24-inch vertical shell, these systems utilize a carefully arranged, reverse-stacked media bed to facilitate efficient progressive filtration throughout the filter depth. This method ensures effective removal of a broad spectrum of particulate matter. The integrated simple backwash system ensures ease of maintenance and consistent output of high-quality filtered water, making these filters ideal for various industrial applications seeking robust and straightforward solids removal.

Request a Pressure Filter quote
Quote RequestStandard Features
- Made in the USA - ASME Code
- Fully Assembled and Tested
- Skid Mounted for easy installation and levelling
- Inlet/outlet and backwash manifolds
- PLC Controller, solenoids, electrical wire, tubing
- Standard carbon steel products, 3/16" thick material
- Backwash automatically initiated by elapsed time or pressure differential
- Easy-entry lid closure with weld tabs for operator safety
- Available in welded carbon steel
- ASME code shaped head construction for durability and safety
- Stainless steel wedgewire removable underdrain
- Structural integrity can withstand the harshest conditions
- Hydraulically balanced to increase effectiveness of backwash while reducing flush frequency and waste of water
- High strength stainless steel wedgewire will withstand a collapse pressure in excess of 600 psi
Applications
- Removal of organic and/or inorganic suspended solids down to 20 microns
- Pre-filtration in applications such as granular activated carbon, reverse osmosis, cartridge or bag filtration and deionized water
- Mining Industry
- Pre-Filtration for RO (Reverse Osmosis)
- Storm water runoff, industrial process water, incoming plant water, waste water clean-up, industrial water for plant reuse
- Oil & Fracking Water
- Construction Remediation
- Stormwater Remediation
- Municipal Process Water
- Nurseries & Greenhouses
Industrial Sand Media Filter Specifications
Model | # Of Tanks | Min Flow Rates | Max Flow Rates | Filtration Surface Area Ft2 | Backwash Flow Rate (per tank) | Media (Ft3) | Max Pressure | Inlet/Outlet Pipe Size | Backwash Pipe Size | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
US GPM | m3/hr | US GPM | m3/hr | US GPM | m3/hr | Gravel | Media | ||||||
SM-1824-1A | 1 | 18 | 4 | 26 | 6 | 1.75 | 26 | 6 | 1 | 3 | 100 psi | 2" | 2" |
SM-2424-1A | 1 | 32 | 7 | 47 | 11 | 3.15 | 47 | 11 | 2 | 5 | 100 psi | 2" | 2" |
SM-1824-2A | 2 | 35 | 8 | 53 | 12 | 3.50 | 26 | 6 | 2 | 5 | 100 psi | 3" | 2" |
SM-3024-1A | 1 | 49 | 11 | 74 | 17 | 4.91 | 74 | 17 | 3 | 7 | 100 psi | 3" | 3" |
SM-1824-3A | 3 | 53 | 12 | 79 | 18 | 5.25 | 26 | 6 | 3 | 8 | 100 psi | 3" | 2" |
SM-2424-2A | 2 | 63 | 14 | 95 | 22 | 6.30 | 47 | 11 | 3 | 9 | 100 psi | 3" | 2" |
SM-3624-1A | 1 | 71 | 16 | 107 | 24 | 7.10 | 107 | 24 | 4 | 10 | 100 psi | 3" | 3" |
SM-2424-3A | 3 | 95 | 22 | 142 | 32 | 9.45 | 47 | 11 | 5 | 14 | 100 psi | 3" | 2" |
SM-3024-2A | 2 | 98 | 22 | 147 | 33 | 9.82 | 74 | 17 | 5 | 14 | 100 psi | 4" | 2" |
SM-4824-1A | 1 | 126 | 29 | 189 | 43 | 12.60 | 189 | 43 | 7 | 21 | 80 psi | 4" | 4" |
SM-3624-2A | 2 | 142 | 32 | 213 | 48 | 14.20 | 107 | 24 | 8 | 20 | 100 psi | 4" | 4" |
SM-3024-3A | 3 | 147 | 33 | 221 | 50 | 14.73 | 74 | 17 | 8 | 21 | 100 psi | 4" | 2" |
SM-5424-1A | 1 | 159 | 36 | 239 | 54 | 15.90 | 239 | 54 | 10 | 23 | 80 psi | 4" | 4" |
SM-3624-3A | 3 | 213 | 48 | 320 | 73 | 21.30 | 107 | 24 | 12 | 30 | 100 psi | 4" | 4" |
SM-4824-2A | 2 | 252 | 57 | 378 | 86 | 25.20 | 189 | 43 | 14 | 42 | 80 psi | 6" | 4" |
SM-5424-2A | 2 | 318 | 72 | 476 | 108 | 31.80 | 239 | 54 | 19 | 46 | 80 psi | 6" | 4" |
SM-4824-3A | 3 | 378 | 86 | 567 | 129 | 37.80 | 189 | 43 | 21 | 63 | 80 psi | 6" | 4" |
SM-5424-3A | 3 | 477 | 108 | 714 | 162 | 47.70 | 239 | 54 | 29 | 69 | 80 psi | 6" | 4" |
SM-4824-4A | 4 | 504 | 115 | 756 | 172 | 50.40 | 189 | 43 | 28 | 84 | 80 psi | 8" | 4" |
SM-4824-5A | 5 | 630 | 143 | 945 | 215 | 63.00 | 189 | 43 | 35 | 105 | 80 psi | 10" | 4" |
SM-4824-6A | 6 | 756 | 172 | 1134 | 258 | 75.60 | 189 | 43 | 42 | 126 | 80 psi | 10" | 4" |
SM-5424-4A | 4 | 636 | 145 | 952 | 216 | 63.60 | 239 | 54 | 38 | 92 | 80 psi | 8" | 4" |
SM-5424-5A | 5 | 795 | 181 | 1190 | 270 | 79.50 | 239 | 54 | 48 | 115 | 80 psi | 10" | 4" |
SM-5424-6A | 6 | 954 | 217 | 1428 | 325 | 95.40 | 239 | 54 | 57 | 138 | 80 psi | 10" | 4" |
