Ecologix Triple Pass Floctubes: Superior Design for Enhanced Flocculation

Table of Contents

1. Introduction
2. How Floctubes Work
3. The Triple Pass Design
4. Superiority Over Traditional Systems
5. Applications in Wastewater Treatment
6. Challenges
7. Solutions and Recommendations
8. Conclusion
9. Glossary
10. FAQ
11. Bibliography

Introduction

Effective flocculation is a cornerstone of wastewater treatment, enabling the aggregation of fine particles into larger flocs for easier removal. Ecologix Environmental Systems offers Triple Pass Floctubes, an advanced mixing solution designed to optimize chemical reactions. This article delves into their unique triple pass configuration and why it outperforms standard designs in efficiency and performance.

How Floctubes Work

Floctubes are tubular mixing chambers where coagulants and flocculants are dosed into wastewater to promote particle aggregation. The process involves:

• Chemical Injection: Precise dosing of chemicals via feed systems.
• Mixing: Turbulent or controlled flow to ensure even distribution.
• Reaction Time: Allowing sufficient contact for coagulation (destabilization) and flocculation (aggregation).

In standard floctubes, wastewater flows through a single path, but Ecologix's design enhances this [1].

The Triple Pass Design

Ecologix Triple Pass Floctubes utilize a multi-pass configuration where wastewater navigates through the tube in three sequential passes. Key features include:

• Extended Pathway: The triple pass extends the effective length, increasing residence time without enlarging the physical size.
• Controlled Flow: Baffles or internal structures guide the flow, promoting gentle mixing to form robust flocs.
• Material Construction: Durable materials like PVC or stainless steel for corrosion resistance.

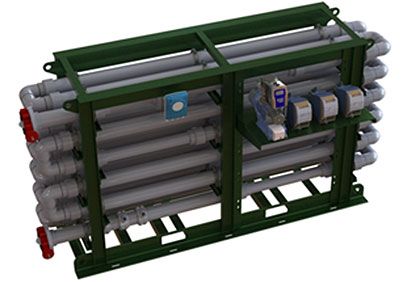

• Size Options: Available in models like the FLT-215 (20-50 GPM), FLT-320 (40-110 GPM), FLT-430 (90-200 GPM), FLT-640 (160-450 GPM), FLT-860 (300-850 GPM), FLT1080 (600-1300 GPM), and FLT-1210 (900-2000 GPM).

This design ensures prolonged chemical contact, improving reaction completeness.

Superiority Over Traditional Systems

Compared to single-pass floctubes or reaction tanks, Ecologix Triple Pass Floctubes offer distinct advantages:

The triple pass achieves better floc formation, reducing downstream loading on clarifiers or DAF systems, and can cut chemical usage by 10-20% in some applications [3].

Applications in Wastewater Treatment

• DAF Integration: Enhances pre-treatment for oil/grease removal in food processing.
• Clarifier Support: Improves solids settling in mining and municipal wastewater.
• Industrial Effluents: Handles variable flow rates in petrochemical and manufacturing sectors.
• Cost-Effective Alternative: Used when reaction times are moderate, less expensive than full reaction tanks [4].

Challenges

• High Composition Variability: Unpredictable pollutant concentrations lead to difficulty with extended reaction times and dosage optimization.
• Flow Variability: Requires precise dosing for optimal performance.
• Installation Space: Though compact, needs integration planning.

Solutions and Recommendations

• Pre-Screening: Add upstream pre-screens for high-solids wastewater.
• Automation: Use Ecologix's control systems for real-time adjustments.
• Customization: Consult Ecologix for model selection based on flow rates. Reach out using our contact form at ecologixsystems.com/contact.
• Hybrid Systems: Combine with chemical feed pumps for fully automated operation.

Conclusion

Ecologix Triple Pass Floctubes represent a superior engineering solution for flocculation, offering extended reaction times, efficiency gains, and cost savings in wastewater treatment. Their design excellence makes them a preferred choice for industries seeking optimized performance. For custom designs, contact Ecologix Environmental Systems at ecologixsystems.com/contact.

Glossary

• Coagulation: Chemical process to destabilize particles in wastewater.
• Flocculation: Aggregation of destabilized particles into larger flocs.
• GPM: Gallons per minute, a measure of flow rate.
• DAF: Dissolved Air Flotation, a clarification method.

FAQ

Bibliography

1. Ecologix Environmental Systems, Industrial Water & Wastewater Treatment Solutions
2. Ecologix Environmental Systems, E-Series DAF Systems Brochure
3. General industry knowledge on flocculation efficiency; for specific data, consult Ecologix Environmental Systems.
4. Ecologix Environmental Systems, Advanced Chemical Demulsification
