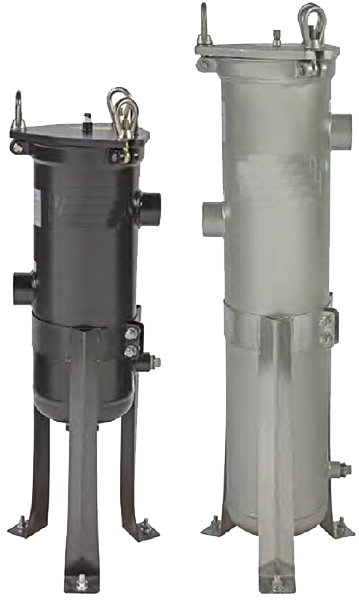

Single Bag Stainless & Carbon Steel Liquid Filter Vessels (GBFV8)
Ecologix Single Bag Stainless & Carbon Steel Liquid Filter Vessels (GBFV8 Series) are a cost effective bag filtration solution for removal of solids from process liquid streams. Vessels are designed with a V-Ring design with a positive snap that guards against by-passes to deliver clean effluent.
Explore features
Request a Filter Vessel quote
Connect with our experts today
Filter Vessel Quote RequestFeatures
- BSP, NPT, or RF Flanged inlet/outlet connections
- Stainless steel or carbon steel construction with epoxy coated exterior support baskets (9/64” standard)
- Adjustable tripod mounting/support leg assemblies
- Easy-access eye-nut/swing-bolt closures with handle
- 304 or 316L stainless steel construction options with uni-style side and bottom outlet
- 2” NPT uni-style side and bottom outlet for increased piping flexibility
- Single O-ring seal (Buna-N standard)
- 150 PSI pressure rating standard
- Snap-fit V-ring bag seal design
Options
- ASME Code Stamp
- CE Mark
- Electropolished Finish (Stainless Steel Only)
- Mesh-lined/perforated baskets
- Alternate Seal Materials
- EPDM (required for NSF-61)
- Teflon® Encapsulated Viton®*
- Viton®*
NSF Certification applies for use only with drinking water. Only products bearing the NSF Mark on the product, product packaging, and/or documentation shipped with the product are Certified. Product options denoted with asterisk (*) are not included in the Certification.
Flow Rate
| Model | Bag Size | Basket Depth | EFA (ft2) | Max Flow Rate (GPM) |
|---|---|---|---|---|
| GBFV815 | #1 | 15 | 2.0 | 90 |
| GBFV830 | #2 | 30 | 4.4 | 200 |
GBFV8 Series Carbon Steel - Ordering Details
| Basket Depth | Inlet/Outlet Size | Inlet/Outlet Style | Outlet | Material | Pressure Rating | Surface Finish |
|---|---|---|---|---|---|---|
| 15 = #1 Size | 2 = 2” | N = FNPT | 3 = Bottom & Opposite | C = Carbon Steel* | 15 = 150 PSI @ 500°F | EC = Epoxy Coated |
| 30 = #2 Size |
GBFV8 Series Stainless Steel - Ordering Details
| Basket Depth | Inlet/Outlet Size | Inlet/Outlet Style | Outlet | Material | Pressure Rating | Surface Finish | ASME/CE | NSF |
|---|---|---|---|---|---|---|---|---|
| 15 = #1 Size | 2 = 2” / DIN50 | B = BSPT | 1 = Bottom Outlet | 4 = 304SS | 15 = 150 PSI @ 250°F | EP = Electropolished | Blank = None | Blank = None |
| 30 = #2 Size | 3 = 3” / DIN80 | D = DIN Flange | 2 = Opposite Outlet | 6 = 316SS | GB = Glass Bead | U = ASME | MC = NSF-61 | |
| F = RF Flange | 3 = Bottom & Opposite | CE Mark (SS Only) | ||||||
| N = FNPT | ||||||||
| T = TC Ferrule |
