OCO-Series Ozone Generators

Ozone generators elimate odors from pump stations and lift stations. The ultra-violet light bulbs produce sweet smelling ozone which will elimate on contact any odor problem associated with raw sewage, trash hoppers, mold and mildew, animal odor, medical waste, food processing and most any noxious odor that is otherwise hard to eliminate.

Request a Quote

Product Overview

These Ultraviolet UV ozone generators produce ZERO nitrogen oxides, and the ozone output is unaffected by high humidity (two characteristics not possible with corona discharge ozone generators unless only pure oxygen is used for feed gas). For Example, with just 50% humidity, this unit will produce as much ozone as a corona discharge ozone generator rated at 6,800 mghr. Ecologix OCO-Series ozone generators come in four models with ozone output capacity ranging from 550 – 6800 mg/hr.

OCO-Series Ozone Generator Specifications

Model OCO-550 OCO-2700 OCO-4000-UV OCO-6800-UV
Generation Method UV ozone technology
(2 15" tubes)		 UV ozone technology
(8 15" UV bulbs)		 UV ozone technology
(12 15" UV tubes)		 UV ozone technology
(12 15" UV tubes)
UV Tube Life 12-15 months 12-15 months 12-15 months 12-15 months
Supply Gas Ambient air Ambient air Ambient air Ambient air
Ozone Output 550 mg/hr 2700 mg/hr 4000 mg/hr 6800 mg/hr
Control Options On/Off rocker switch On off rocker switch, 24 hour 1 shot timer (120 VAC only) On off rocker switch, 24 hour 1 shot timer (120 VAC only) On off rocker switch, 2-4-8-12 hour 1 shot timer (120 VAC only)
Dimensions 25"L x 5"W x 6.25"H 21"L x 9"W x 7 5/8 "H 22"L x 9"W x 7 5/8 "H 21"L x 9"W x 7 5/8 "H
Weight 7.6 lbs 20 lbs 22 lbs 23 lbs
Electrical 120 volt, .7 Amp, 75 Watt, 50/60Hz - 240 volt, .35 Amp, 40 Watt, 50/60Hz 120 volt, 2 Amp, 50/60Hz - 240 volt, 2 Amp, 50/60Hz 120 volt, 3 Amp, 50/60Hz - 240 volt, 3 Amp, 50/60Hz 120 volt, 5 Amp, 50/60Hz - 240 volt, 5 Amp, 50/60Hz
Fan Size 105 cfm 105 cfm 105 cfm 105 cfm

Installing the OCO Series Ozone Generator

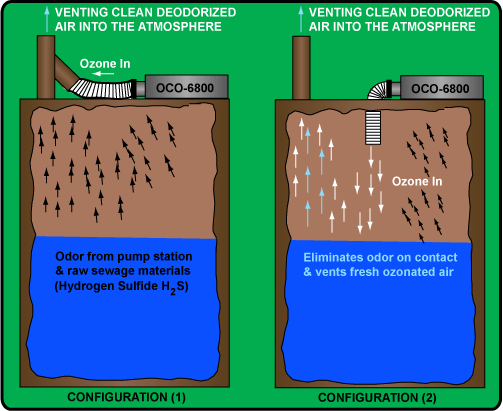

The OCO Ozone Generator series are used in a number of applications to eliminate bad odors on. The OCO Series are most commonly used to eliminate odors associated with pump stations and lift stations. The illustration to the right depicts two common methods of installing an OCO Ozone Generator for eliminating odor produced by ordinary pump stations.

Configuration (1) shows the ozone generator mounted to the outlet piping on the top of the pump station. This method uses a typical 4″ dryer hose to connect the ozone generator to the outlet piping in a “Y” configuration. As the air and odor rise from the pump station, the ozonated air intercepts the venting air and eliminates the odor on contact before it can exit into the atmosphere.
Configuration (2) shows the ozone generator mounted on top of the pump station with the 4″ dryer hose being installed directly into the tank of the pump station. This method blows the ozonated air downward, eliminating the odor on contact before it vents through the pump station outlet into the atmosphere.

OCO Models

OCO-550

  • Generation Method: UV ozone technology. (2 15″ U tubes)
  • UV tube life: 12-15 months
  • Supply Gas: Ambient Air
  • Ozone output: 550 mg/hr virually unaffected by humidity (Unit will produce 700 mg/hr for first week
  • Control options: On off rocker switch standard on all models 24 hour 1 shot timer (120 VAC only).
  • Dimensions & Weight: 25″L x 5″W x 6.25″H – 7.6 lbs
  • Electrical: 120 volt, .7 Amp, 75 Watt, 50/60Hz – 240 volt, .35 Amp, 40 Watt, 50/60Hz
  • Fan Size: 105 cfm
  • Construction: Stainless steel inner chassis with a high impact extruded PVC cabinet.

OCO-2700

  • Generation Method: UV ozone technology. (8 15″ UV bulbs)
  • UV Tube life: 12-15 months
  • Supply Gas: Ambient Air
  • Ozone output: 2700 mg/hr virtually unaffected by humidity (Unit will produce 3300 mg/hr for first week)
  • Control Options: On off rocker switch standard on all models, 24 hour 1 shot timer (120 VAC only). (Optional digital 1 second to 24 hr. 1 shot timer, or 7 day timer – 120/240 VAC)
  • Dimensions and Weight: 21″L x 9″W x 7 5/8 “H / 20 lbs
  • Electrical: 120 volt, 2 Amp, 50/60Hz – 240 volt, 2 Amp, 50/60Hz
  • Fan Size: 105 cfm
  • Construction: Stainless Steel chassis

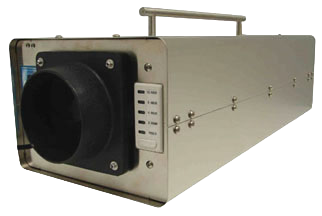

OCO-4000-UV

  • Generation Method: UV ozone technology. (12 15″ UV tubes)
  • UV tube life: 12-15 months
  • Supply Gas: Ambient Air
  • Ozone outut: 4000 mg/hr virtually unaffected by humidity (Unit will produce 5000 mg/hr for first week)
  • Control options: On off rocker switch standard on all models, 24 hour 1 shot timer (120 VAC only). (optional digital 1 second to 24 hour 1 shot timer, or 7 day timer – 120 and 240 VAC)
  • Dimensions and Weight: 22″L x 9″W x 7 5/8 “H, 22 lbs
  • Electrical: 120 volt, 3 Amp, 50/60Hz – 240 volt, 3 Amp, 50/60Hz
  • Fan Size: 105 cfm
  • Construction: Stainless Steel chassis

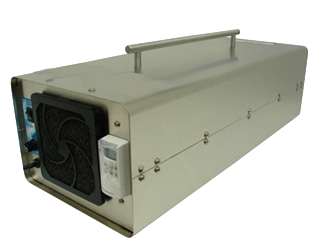

OCO-6800-UV

  • Specifications for the OCO-6800
  • Generation Method: UV ozone technology. (12 15″ UV tubes)
  • UV tube life: 12-15 months
  • Supply Gas: Ambient Air
  • Ozone outut: 6800 mg/hr virtually unaffected by humidity (Unit will produce 7500 mg/hr for first week)
  • Control options: On off rocker switch standard on all models, 2-4-8-12 hour 1 shot timer (120 VAC only). (optional digital 1 second to 24 hour 1 shot timer, or 7 day timer – 120 and 240 VAC)
  • Dimensions and Weight: 21″L x 9″W x 7 5/8 “H, 23 lbs
  • Electrical: 120 volt, 5 Amp, 50/60Hz – 240 volt, 5 Amp, 50/60Hz
  • Fan Size: 105 cfm
  • Construction: Stainless Steel chassis

OCO Booster Fan

The OCO Booster Fan will accompany any OCO Ozone Generator to assist in boosting the outlet power for applications that require extra force. The booster fan can be used with a typical corrugated dryer style hose to generate ozone for several feet or several yards from the generator. Works great for circulating pump stations or any odor problem that requires the generator to ciculate ozone at a distance.

Client Testimonials

Anchorage Water & Wastewater Utility

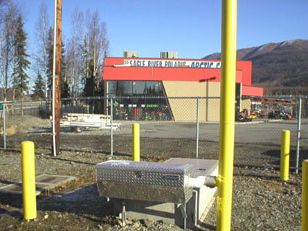

The Ozone Generator that we purchased from you works great so far. The unit was installed at a 550 gpm wet pit lift station. We built our own box to protect it from the elements. The two businesses next to the lift station were complaining about the odor. We tried several modifications. First we raised the vent pipe 12″, cycling the pumps more often, we then tried odor controlling liquids, but none of these seemed to work. The OCO-10K Ozone Generator has been in service for three weeks now with out any complaints. We also installed a timer to start and stop (7:00am to 7:00 pm) 7 days a week.

Licking County Waste Water Department, Licking County, OH

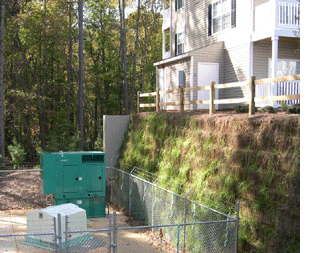

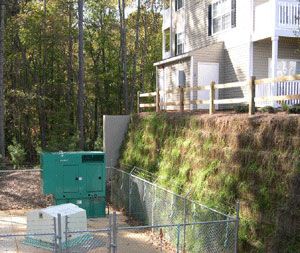

Licking County Wastewater Department operates several “open” type sewage pump stations. These pump stations consist of gravity sewage and STEP sewage. The STEP tank effluent is a septage tank product and creates Hydrogen Sulfide gas with a lot of odor.

The County has always fed Ferrous Chloride in the past for odor control which never worked very well. The Summer of 2007 I decided to purchase an OCO Ozonator unit.The installation was very easy. We used Sch 40 PVC pipe to direct the Ozone flow into the wet well. The result was remarkable. Odor complaints were regular by the nearby homeowners. The complaints have stopped all together and we have discontinued the use of Ferrous Chloride. We have purchased a second unit and have installed it in the same fashion at another downstream pump station and it works great also.

Kevin Eby, Director
Licking County Wastewater, Buckeye Lake, OH
